2. Disconnect the power button assembly cable from the system board.

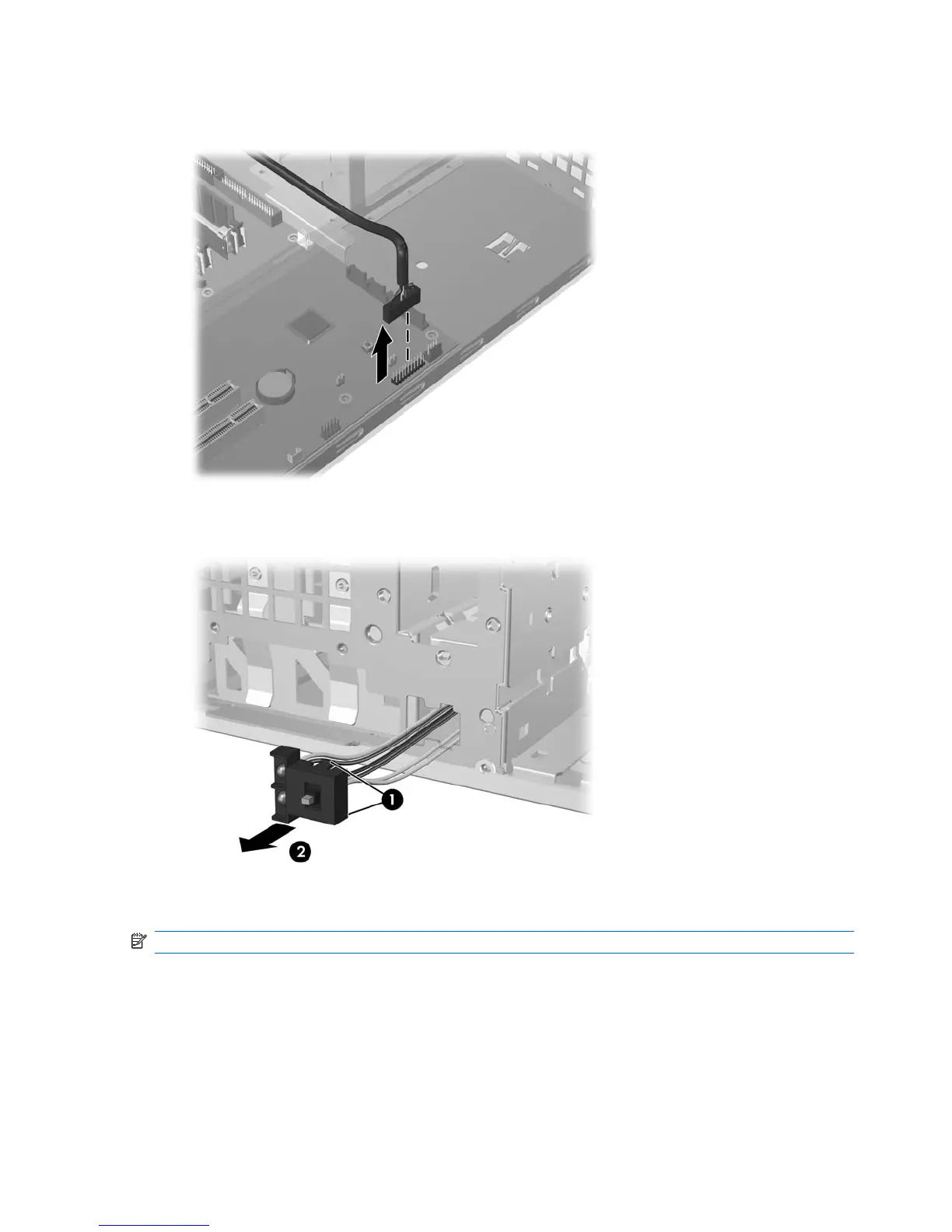

Figure 4-16 Removing the power button assembly cable
3. Press in on the clips that secure the power button assembly to the chassis (1).
Figure 4-17 Removing the power button assembly
4. Dislodge the metal clip from the chassis by rocking the power button assembly back and forth, and
then slide the power button assembly out from the front of the chassis (2).
NOTE: To replace the power button assembly, reverse the previous steps.
System speaker
This section describes how to remove the system speaker.
