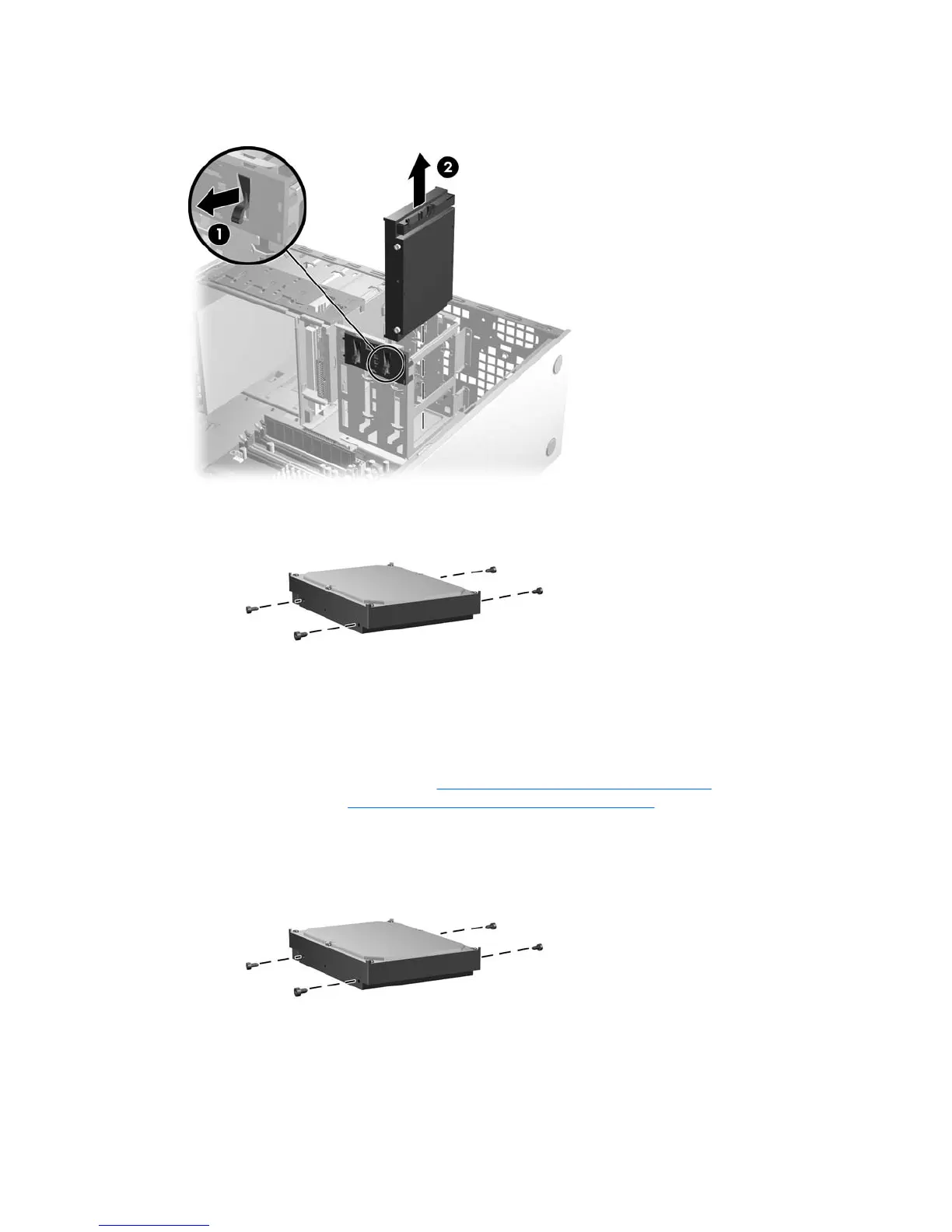

3. Lift the green drive-lock release tab (1) and slide the hard drive out of the chassis (2).
Figure 4-53 Removing the SATA hard drive
4. Remove the four guide screws from the hard drive and retain them for later use.
Installing a SATA hard drive
To install one or two SATA hard drives:
1. Disconnect power from the system (
Predisassembly procedures on page 58), and then remove
the side access panel (
Removing the side access panel on page 64).
2. Select a drive bay in which to install the SATA hard drive.
3. Install the four silver, ANSI 6–32 guide screws into the hard drive.
4. Slide the SATA drive into the selected bay until it snaps into place.
100 Chapter 4 Removal and replacement procedures ENWW
