Tools and software requirements
●
Torx T-15 driver
●
Flat blade and cross-tip screwdrivers
●
Diagnostics software
Screws
The screws used in the workstation are not interchangeable. Metric screws are used for optical and
diskette devices, and American National Standards Institute (ANSI) screws are used for hard drives. If
an incorrect screw is used during the reassembly process, it can damage the workstation. HP strongly
recommends that you keep all screws removed during disassembly with the removed part, and then
returned to their proper locations.
NOTE: Metric screws have a black finish. ANSI (unified) screws have a silver finish.
As each subassembly is removed from the workstation, place the subassembly away from the work
area to prevent damage.
Additional drive-guide screws are provided on the system chassis in case they are needed. The
Figure 4-1 Metric and ANSI screw identification on page 56 figure shows the eight metric M3 screws
(1) located on the chassis near the 5.25-inch optical drive bays. These screws can be used to mount
additional optical drives or an optional diskette drive. There are four ANSI 6–32 screws (2) located on
the chassis near the hard drive. These screws can be used to mount additional hard drives in the 3.5
inch hard drive cage.
NOTE: The metric (black) and ANSI (silver) screws are not interchangeable.

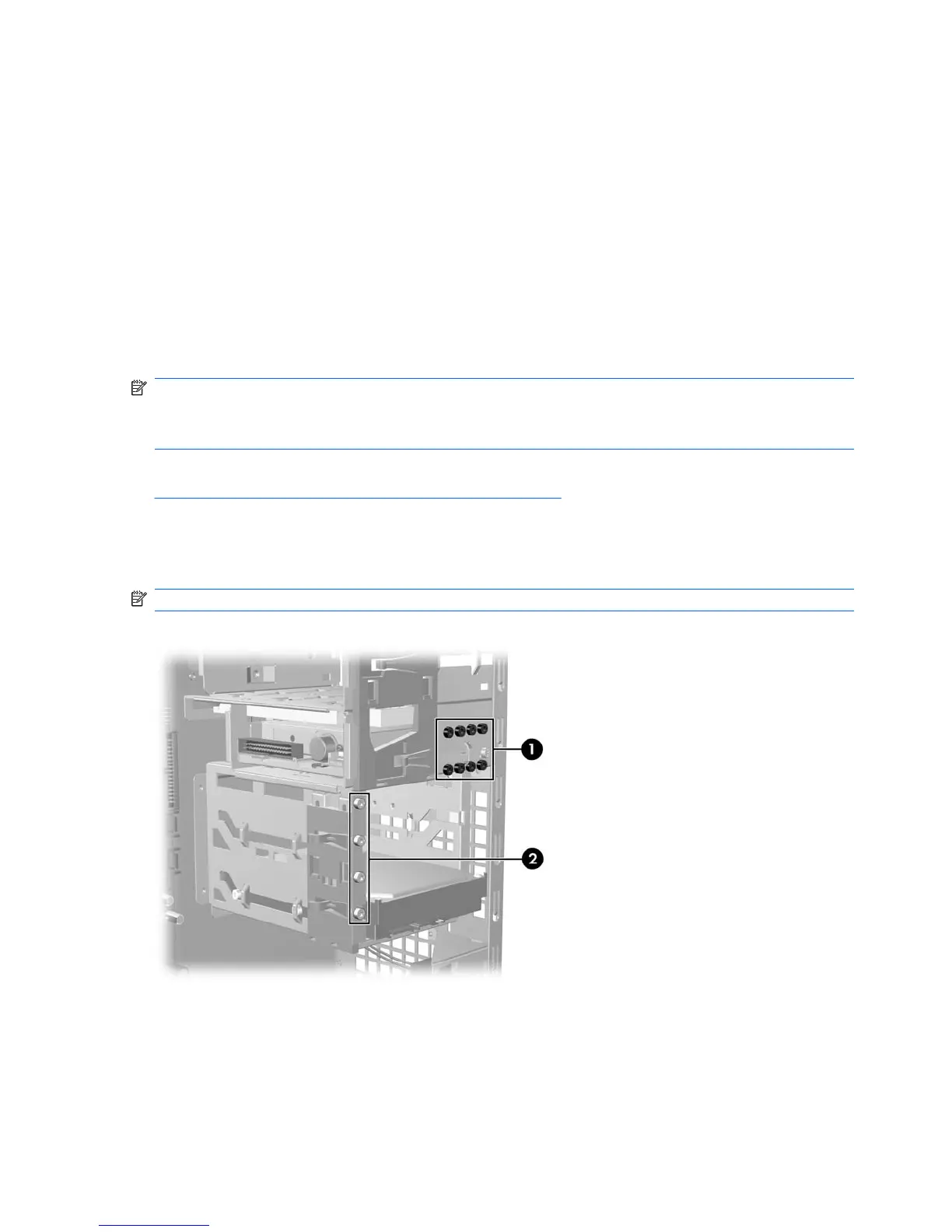

Figure 4-1 Metric and ANSI screw identification
56 Chapter 4 Removal and replacement procedures ENWW

HP xw4600 Specifications

General

Tcase	72.4 °C
Bus type	FSB
Stepping	E0
Processor cache	6 MB
Processor cores	2
Processor model	E8400
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor series	Intel Core 2 Duo E8000 Series
Processor socket	LGA 775 (Socket T)
Processor codename	Wolfdale
Processing Die size	107 mm²
Processor frequency	3 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor front side bus	1333 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	65 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	9
Number of Processing Die Transistors	410 M
Audio system	High Definition Audio
Product type	Workstation
Motherboard chipset	Intel® X38 Express
ECC	Yes
Internal memory	2 GB
Memory clock speed	800 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	2 x 1 GB
HDD speed	7200 RPM
HDD capacity	250 GB
HDD interface	SATA
Optical drive type	DVD-RW
Graphics card	-
Networking features	Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power supply	475 W
Chassis type	Tower
Country of origin	China
Processor code	SLB9J
Processor ARK ID	33910
Processor package size	37.5 x 37.5 mm
On-board graphics card model	Not available

Weight and Dimensions

Depth	456 mm
Width	168 mm
Height	450 mm
Weight	19000 g
