SAS hard drive
This section describes how to remove and install a SAS hard drive.
Removing a SAS hard drive
1. Disconnect power from the system (Predisassembly procedures on page 58), and then remove
the side access panel (
Removing the side access panel on page 64).
2. Disconnect the power (1) and data (2) cables from the hard drive.

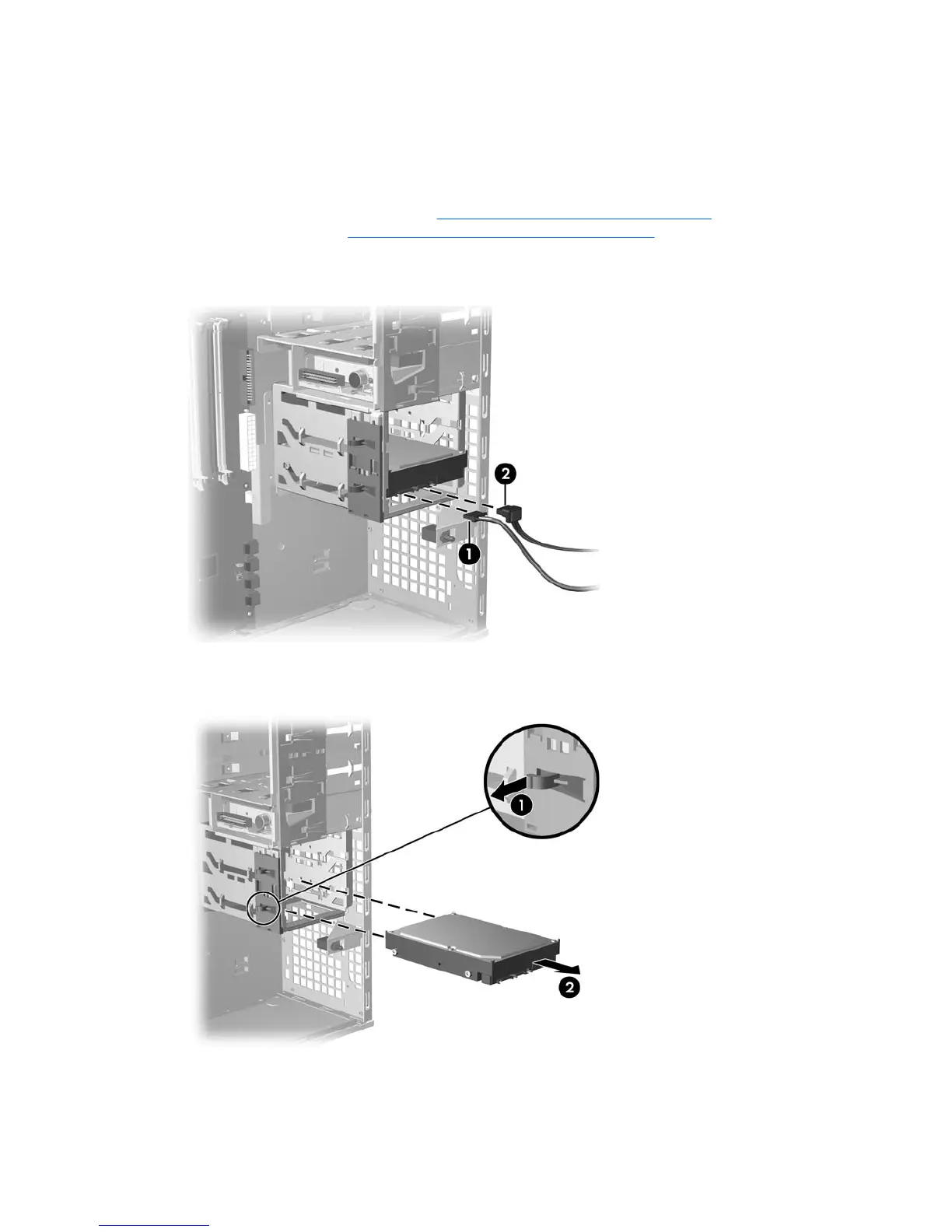

Figure 4-47 Disconnecting the SAS hard drive cables
3. Lift the green drive-lock release tab (1), and then slide the hard drive out of the chassis (2).
Figure 4-48 Removing the SAS hard drive
