SATA hard drive
For more information about SATA hard drives and SATA RAID configurations, see Configuring RAID
devices on page 141.
This section describes how to remove and install a SATA hard drive.
Removing a SATA hard drive
To remove a SATA hard drive:
1. Disconnect power from the system (
Predisassembly procedures on page 58), and then remove
the side access panel (
Removing the side access panel on page 64).
2. Disconnect the data (1) and power (2) cables from the SATA hard drive.

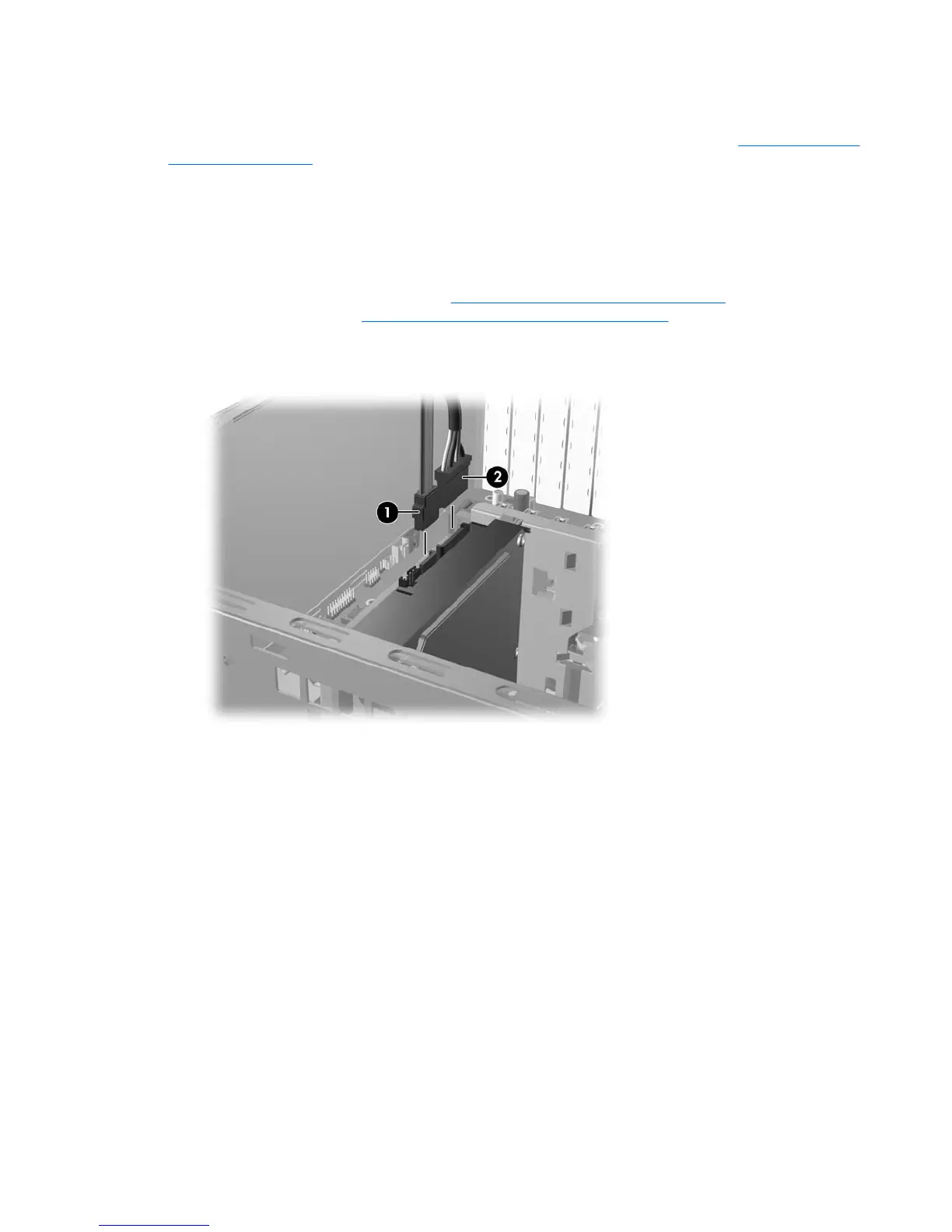

Figure 4-52 Disconnecting the SATA hard drive cables
ENWW Removing and replacing components 99
