3. Lift the green drive-lock release lever (1) and gently slide the drive out of the chassis (2).

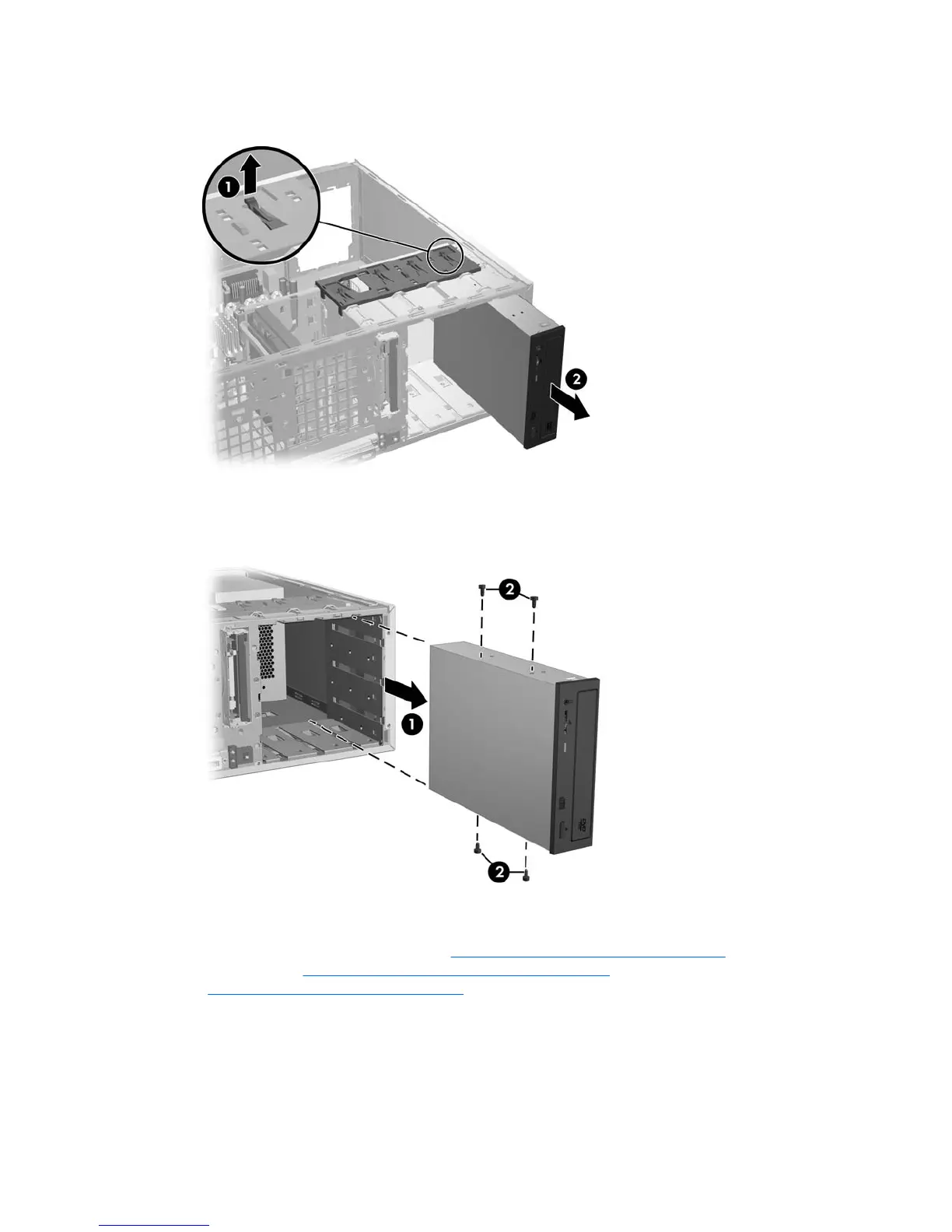

Figure 4-38 Removing the optical drive from the chassis
4. After removing the optical drive (1), if you plan to install another drive, remove only the four guide
screws from the drive casing (2).
Figure 4-39 Removing the optical drive screws
Installing an optical drive (minitower configuration)
1. Disconnect power from the system (Predisassembly procedures on page 58), remove the side
access panel (
Removing the side access panel on page 64), and then remove the front bezel
(
Removing the front bezel on page 68).
ENWW Removing and replacing components 91
