PCI card support bracket
Some PCI cards have retainers installed to prevent movement during shipping.
Removing a PCI card support bracket
To remove a PCI card support bracket:
1. Disconnect power from the system (
Predisassembly procedures on page 58) and remove the side
access panel (
Removing the side access panel on page 64)
2. Remove the two screws that attach the bracket to the chassis (1).

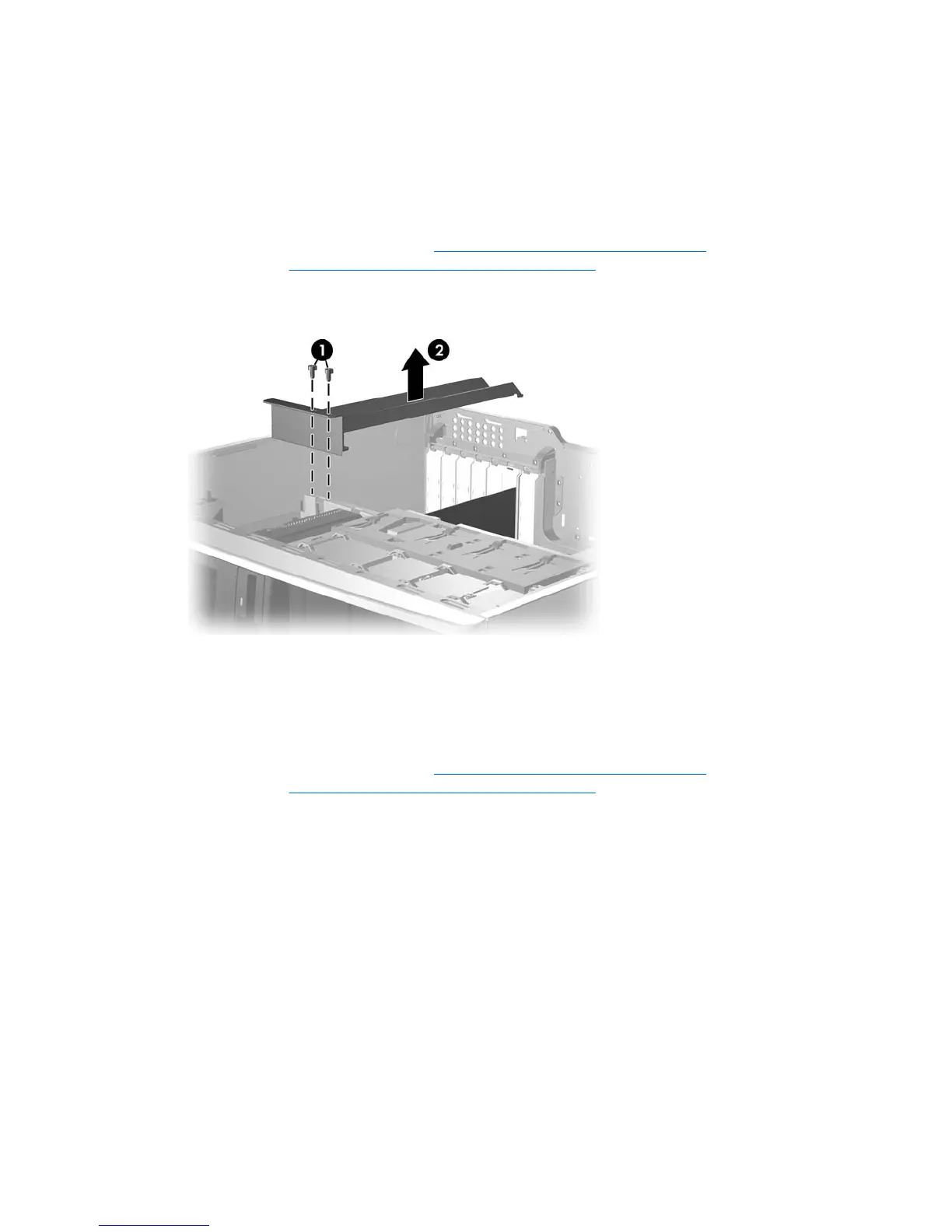

Figure 4-26 Removing a PCI card support bracket
3. Lift the bracket out of the chassis (2).
Installing a PCI card support bracket
To install the PCI card support bracket:
1. Disconnect power from the system (
Predisassembly procedures on page 58) and remove the side
access panel (
Removing the side access panel on page 64).
80 Chapter 4 Removal and replacement procedures ENWW
