2. Open the PCI card retention clamp. Press the retention clamp levers down to unsnap, and then
rotate them up (1).

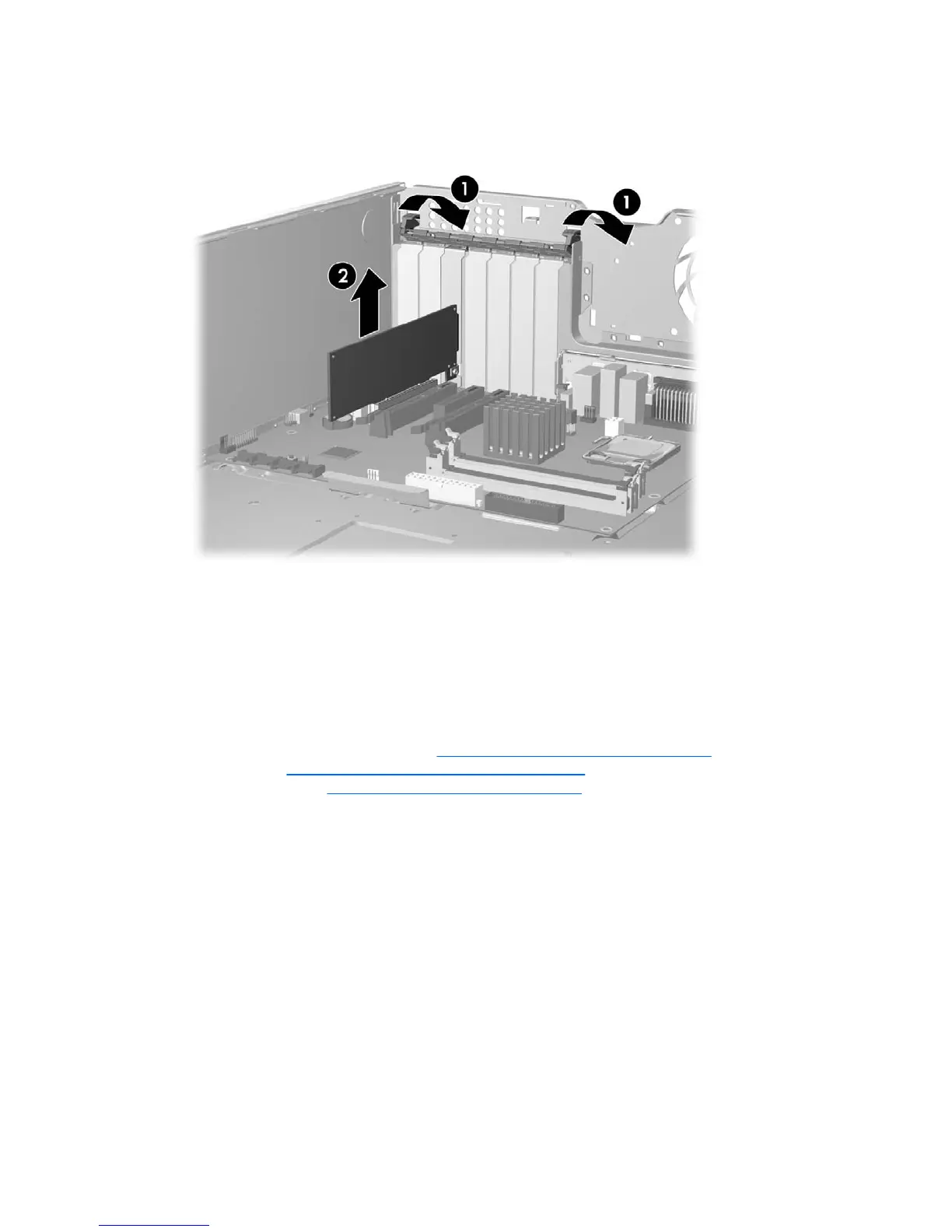

Figure 4-30 Removing a PCI card
3. Lift the PCI card out of the chassis (2). Store the card in an anti static bag.
4. Install a PCI slot cover and close the PCI retention clamp. If the PCI retention clamp levers do not
close, ensure that all cards are properly seated, and then try again.
Installing a PCI card
To install a PCI card:
1. Disconnect power from the system (
Predisassembly procedures on page 58), remove the side
access panel (
Removing the side access panel on page 64), and then remove the PCI card support
bracket, if installed (
PCI card support bracket on page 80).
84 Chapter 4 Removal and replacement procedures ENWW
