2. Remove the screw attaching the lock to the chassis.

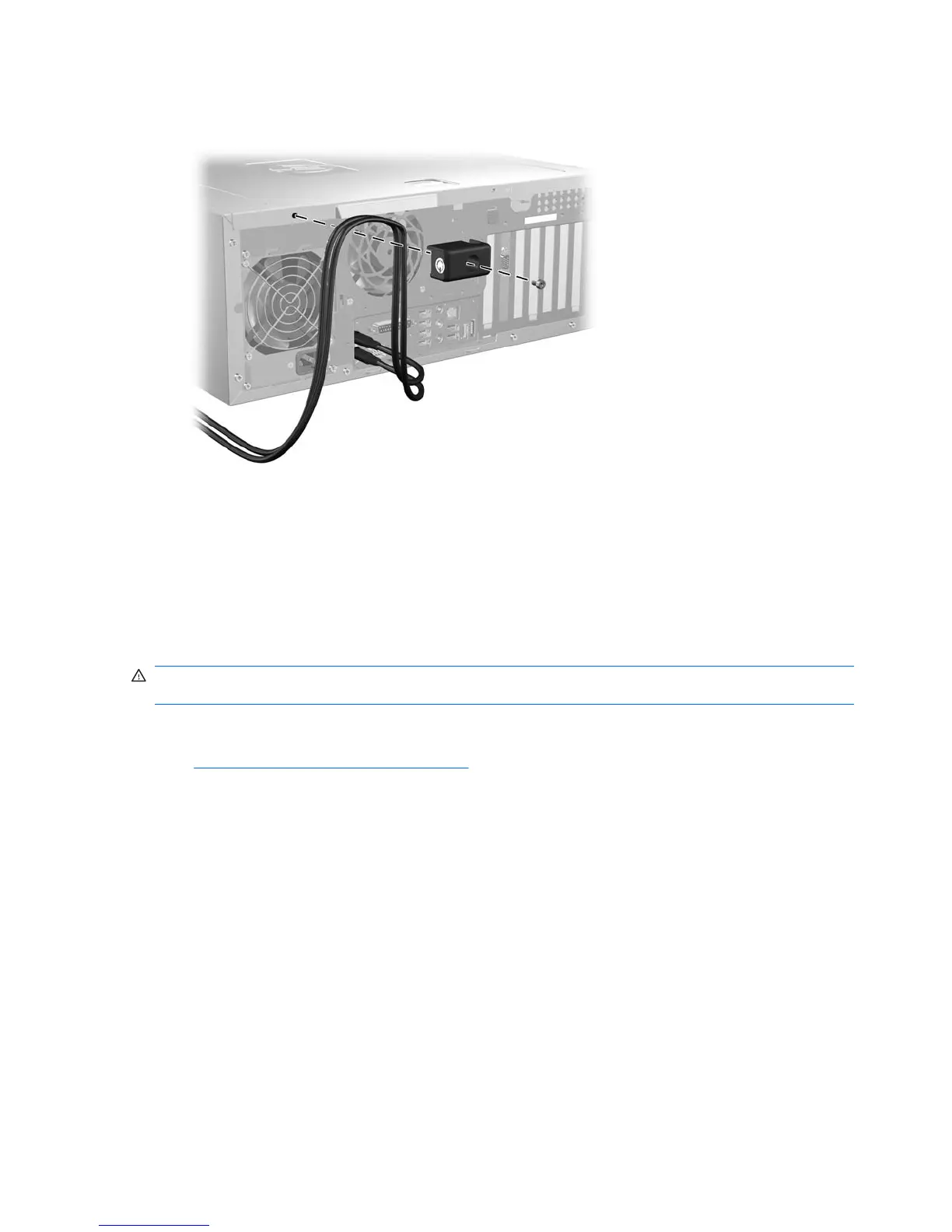

Figure 4-6 Removing the lock screws
Side access panel
Before accessing the internal components of the workstation, the side access panel must be removed.
This section describes how to remove and replace the side access panel.
Removing the side access panel
To remove the side access panel:
WARNING! Before removing the workstation side access panel, be sure that the workstation is
powered off and that the power cord is disconnected from the electrical outlet.
1. Disconnect power from the system
(
Predisassembly procedures on page 58).
2. Unlock any locks that may be present (cable lock or padlock).
64 Chapter 4 Removal and replacement procedures ENWW
