5. Connect the data cable to the hard drive (1) and to the system board (2).

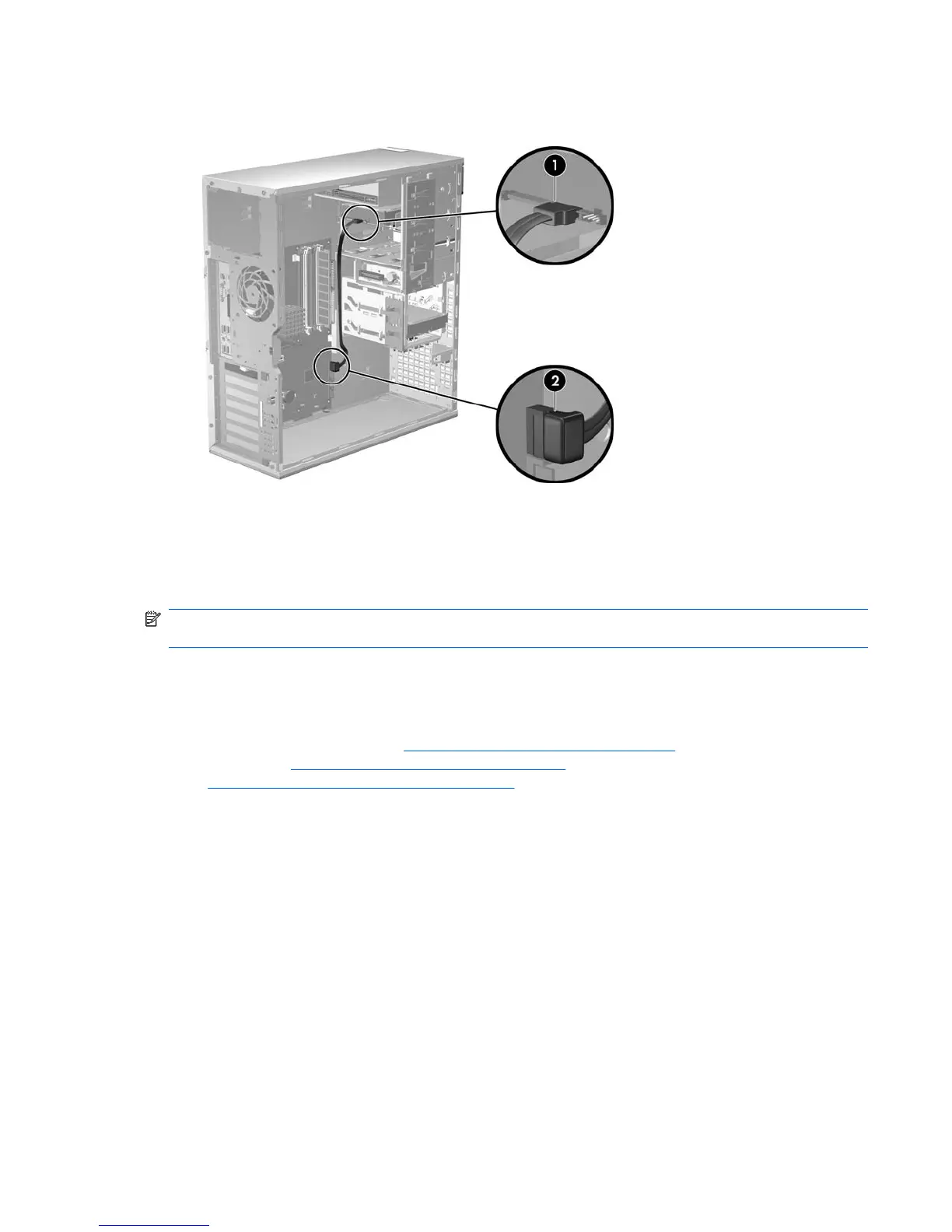

Figure 4-58 Connecting the data cable
6. Connect the power cable (not shown).
Processor heatsink
This section describes how to remove and install a processor heatsink.
NOTE: Not all heatsinks are the same. Therefore, the heatsink shown in the following figures is an
example of what might be installed in your workstation.
Removing the processor heatsink
To remove a heatsink:
1. Power down the workstation (
Predisassembly procedures on page 58), disconnect power from the
workstation (
Predisassembly procedures on page 58), and then remove the side access panel
(
Removing the side access panel on page 64).
ENWW Removing and replacing components 103
