Required DIMM installation order

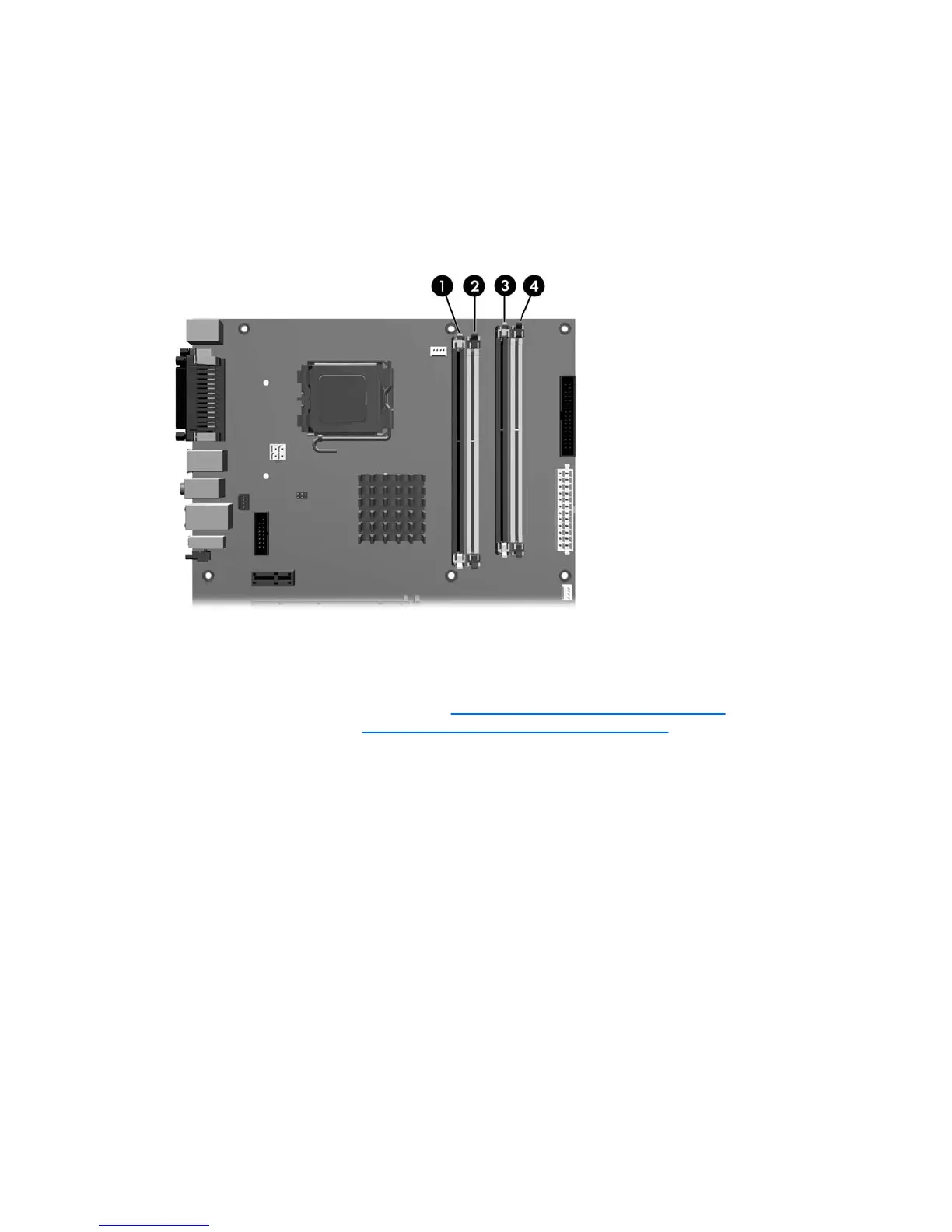

Use the following illustration as a guide for installing memory:
●
If installing only one DIMM, it must be installed in socket (1).
●
The first DIMM pair must be installed in sockets (1) and (3).
●
The second DIMM pair must be installed in sockets (2) and (4).
Figure 4-22 Required DIMM installation order
Installing a memory module
To install a memory module:
1. Disconnect power from the system (
Predisassembly procedures on page 58), and then remove
the side access panel (
Removing the side access panel on page 64).
