2. Push gently outward on the socket levers.

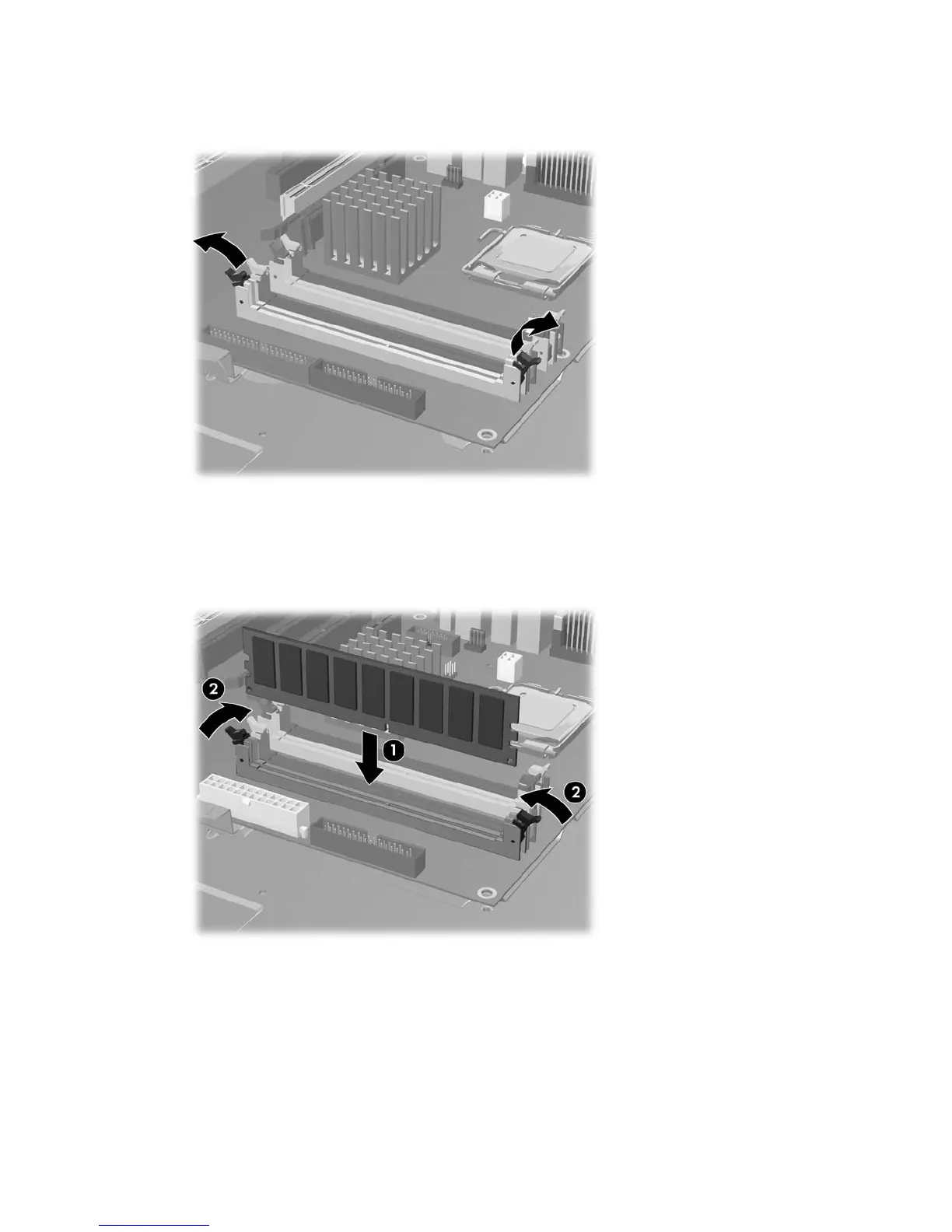

Figure 4-23 Opening the DIMM socket levers
3. Align the DIMM connector key with the DIMM socket key, and then seat the DIMM firmly in the
socket (1).
4. Secure the socket levers (2).
Figure 4-24 Installing a memory module
