Power connections to drives
For help identifying power cables, see the following figure. Ensure that all cables are routed or tied so
that they cannot interfere with the processor heatsink fans.

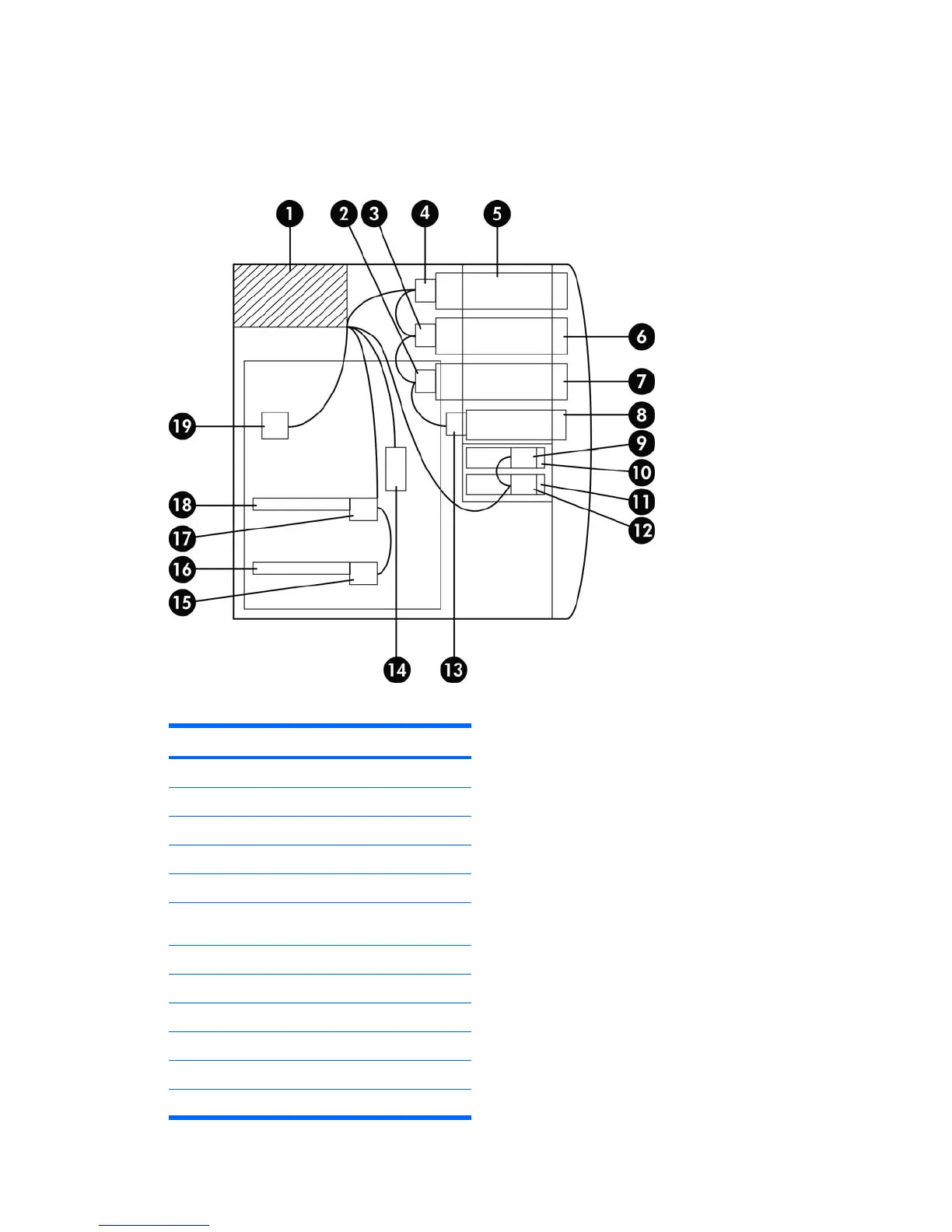

Figure 4-36 Identifying Identifying workstation power connectors for a typical configurationIdentifying
Table 4-8 Workstation power connector description
Item Description
1 Power supply
2 P8
3 P6P7
4 P4/P5
5 Optical drive 1
6 Optical drive 2 and Hard drive 4
7 Optical drive 3 and Hard drive 3
8 Diskette
9 P11
10 Hard drive 2
11 Hard drive 1
12 P10
ENWW Removing and replacing components 89
