HP xw4600 - Page 170

Workstation

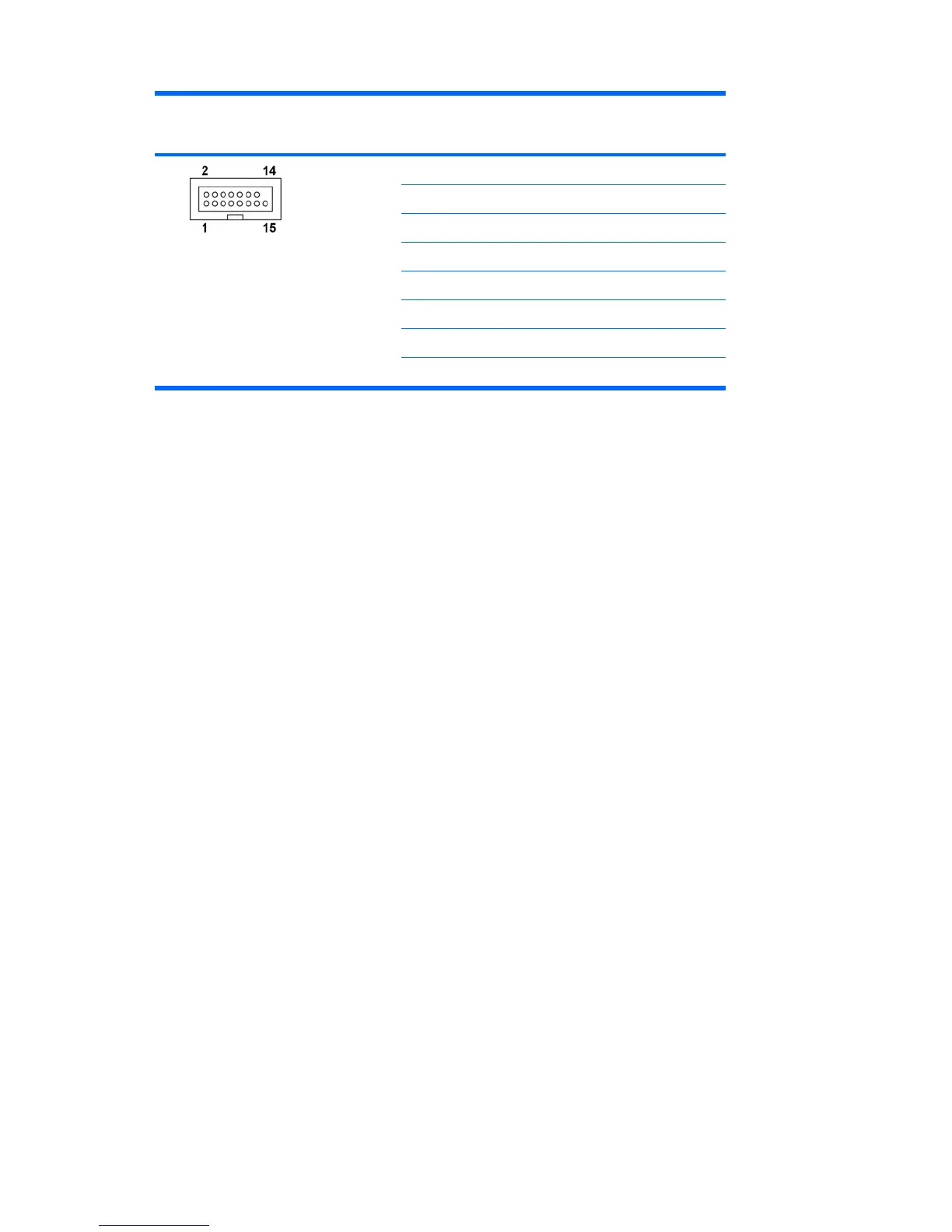

internal serial connector
Pin Signal Pin Signal
1 DTR2# 9 +5V
2 RXD2 10 +3.3V AUX
3 CTS2# 11 RTS2#
4 DSR2# 12 +3.3V
5 TXD2 13 DCD2#
6 +3.3V AUX 14 -12V
7 Ground 15 +12V
8 Ground
162 Appendix A Appendix A—Connector pins ENWW
