Connect one end of the monitoring network cable (standard network cable) to the
FE_1 port on the main control module, and connect the other end to the
monitoring device,
NO TE
This wiring method applies to the smart module scenarios or other scenarios with LAN
switches regardless of teamwork networking.

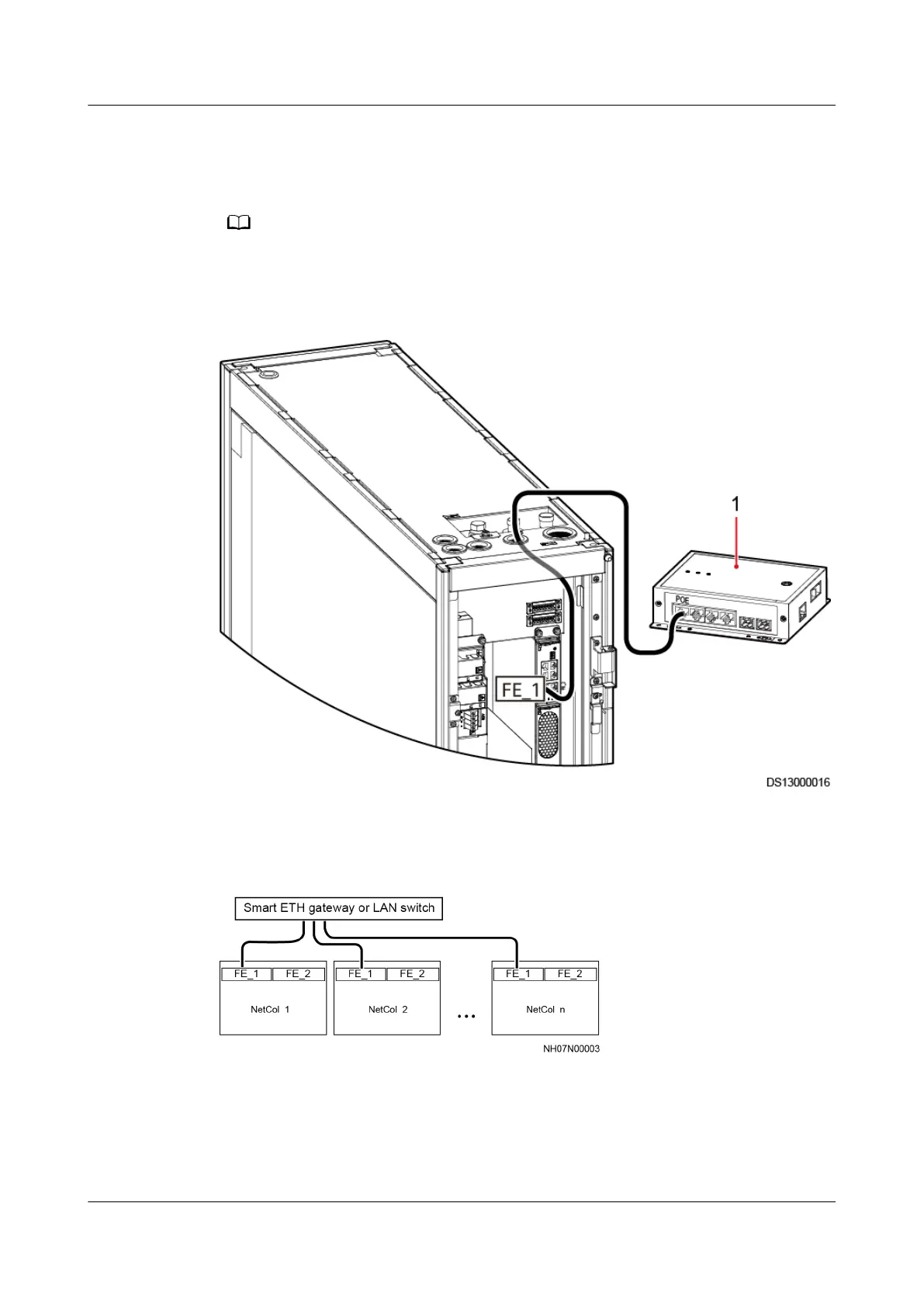

Figure 3-63 Teamwork network diagram
(1) Smart ETH gateway
Figure 3-64 Connecting the FE monitoring network cable
3.11.6 Connecting T/H Sensors Outside Cabinets
To connect T/H sensors outside cabinets, you need to connect cables to the
sensors and set their DIP switches.
