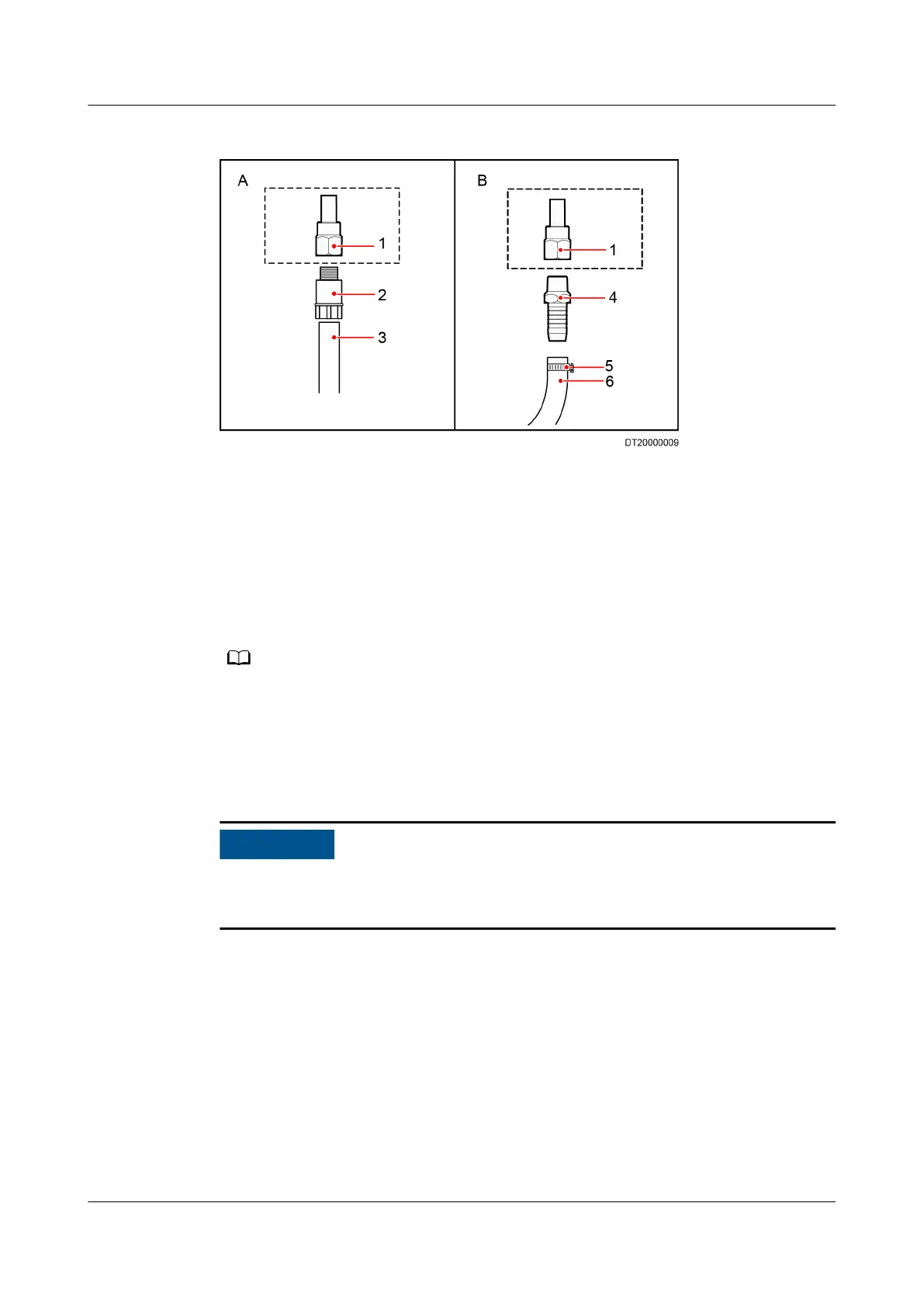

Figure 3-3 Connecting a water inlet pipe
(1) Connector with inner screw
threads: G 1/2 inch, delivered
with the water inlet pipe for
the smart cooling product
(2) Rigid pipe conversion
adapter: G 1/2 inch; connected
to a rigid pipe with outer screw
threads
(3) Rigid pipe: made of PP-R or
other materials
(4) Pagoda connector: G 1/2
inch; connected to a pagoda
connector with outer screw
threads
(5) Hose clamp (6) Hose: made of EPDM or
other materials
NO TE
The object shown in the dotted line box is the water inlet pipe connector with inner screw
threads delivered with smart cooling products. The hose clamp as shown by (5) in the
preceding
gure is provided in standard conguration. Other parts are not provided and
need to be purchased.
3.1.2.5 Drainpipe
NO TICE
A drainpipe should be able to withstand a temperature greater than 85°C.
Otherwise, pipe deformation may occur (for equipment congured with a
humidier).
A drainpipe can be connected in two ways:
● Top pipe routing: For the connection method of the water pump drainpipe,
see method A in Figure 3-4.
● Bottom pipe routing: See methods B and C in Figure 3-4.
Determine a pipe connection method based on site pipe materials.
