When routing pipes from the top, do not route the pipes over servers or other
devices to protect the servers or other devices from being aected by pipe leaks.
Step 3 Connect the refrigerant gas and liquid pipes for the two straight pipes respectively
to the gas and liquid pipes for the outdoor unit.
Step 4 When you route pipes from the top, melt the plugs at the ends of the refrigerant
pipe using a welding torch, and weld the refrigerant gas and liquid pipes
respectively to the gas and liquid pipes for the outdoor unit, as shown in Figure
3-35.

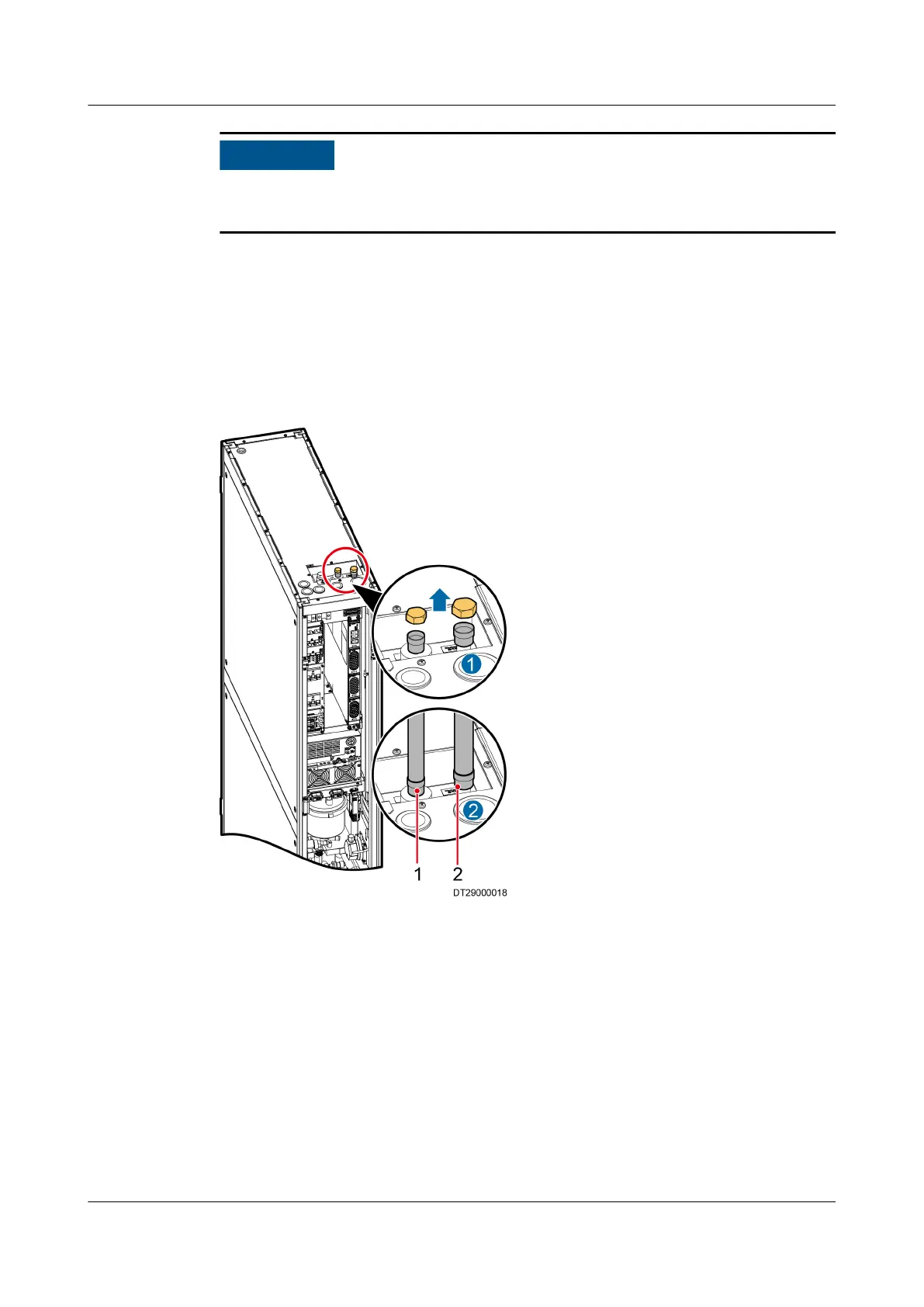

Figure 3-35 Routing pipes from the top
(1) Liquid pipe
(2) Gas pipe
----End
