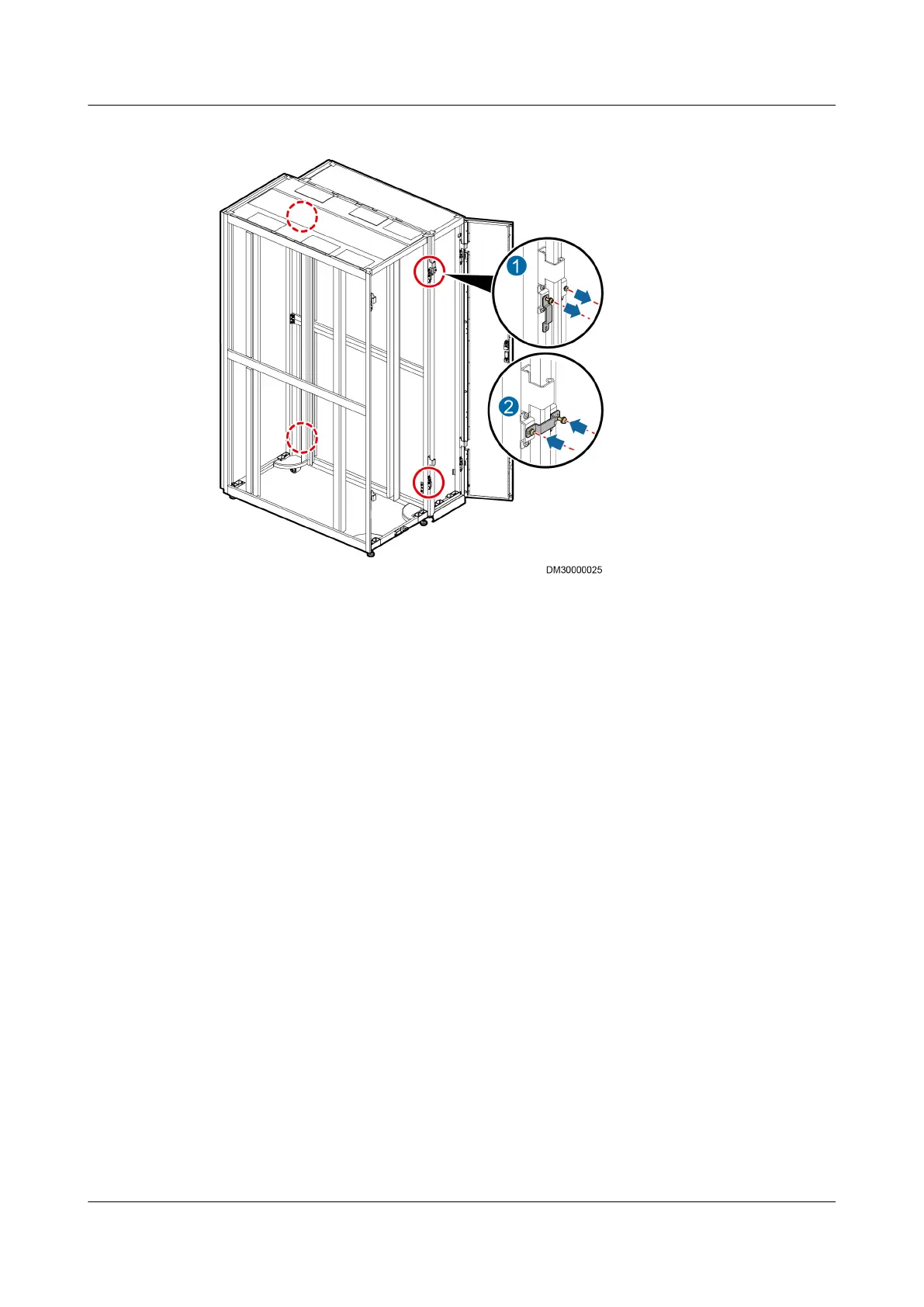

Figure 3-26 Combining cabinets
3.8.5 Securing the Indoor Unit
If there is a base, secure the indoor unit to the base. If there is no base, secure the
indoor unit to the oor. Figure 3-27 shows the distances between mounting holes
in the indoor unit.
