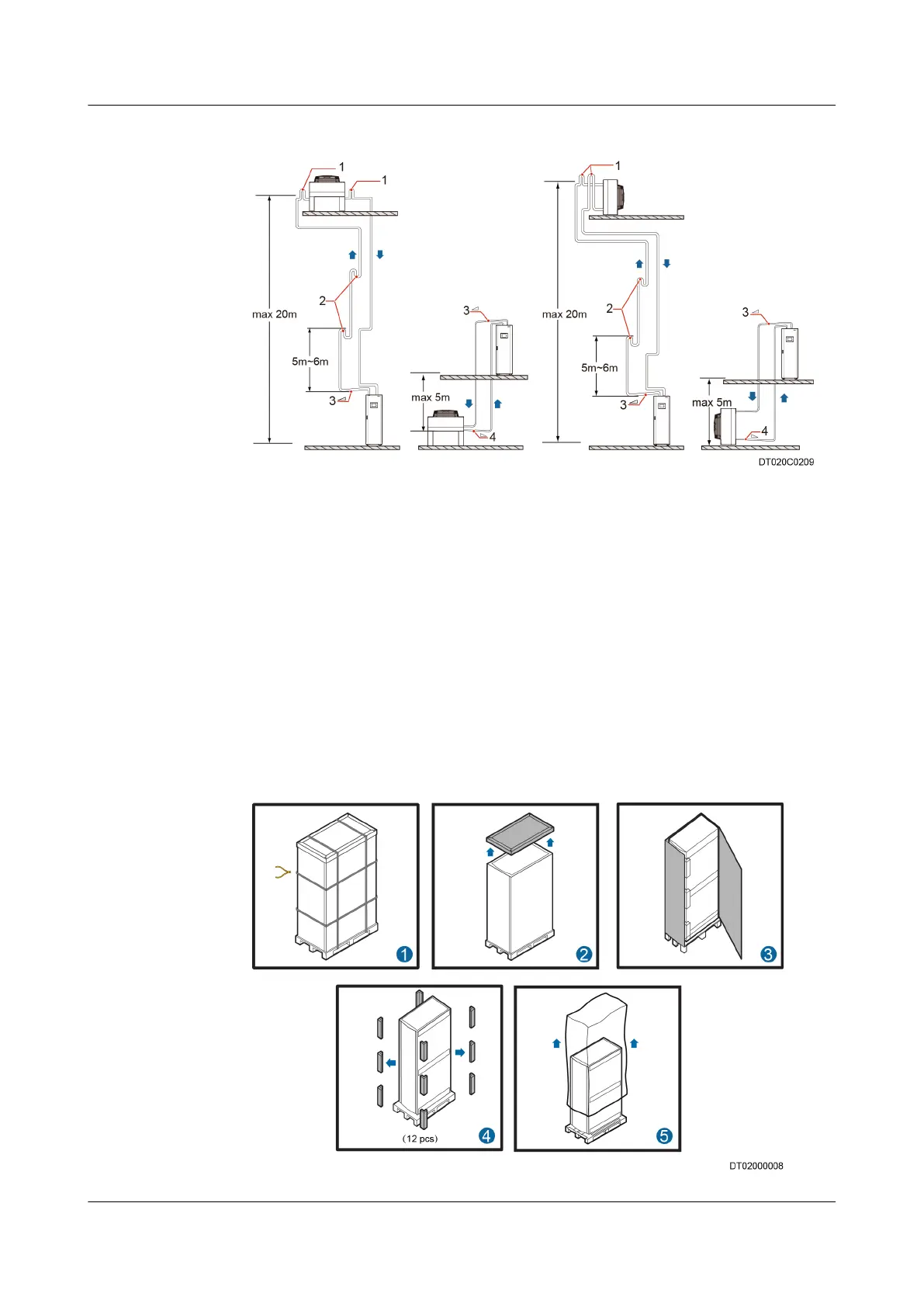

Figure 3-9 Routing pipes from the top
(1) Inverted traps (2) Oil traps (3) Tilted gas pipe (4) Tilted liquid pipe
3.2 Unpacking
Procedure
Step 1 Inspect the outer packing for signs of damage. If any damage is found, contact the
shipping company immediately.
Step 2 Unpack the product.
1. Remove the straps, top cover, outer packing, cushioning materials, and then
plastic
lm, as shown in Figure 3-10.
Figure 3-10 Unpacking
NetCol5000-A025 In-row Air Cooled Smart Cooling
Product
User Manual (300 mm Width) 3 Installation Guide
