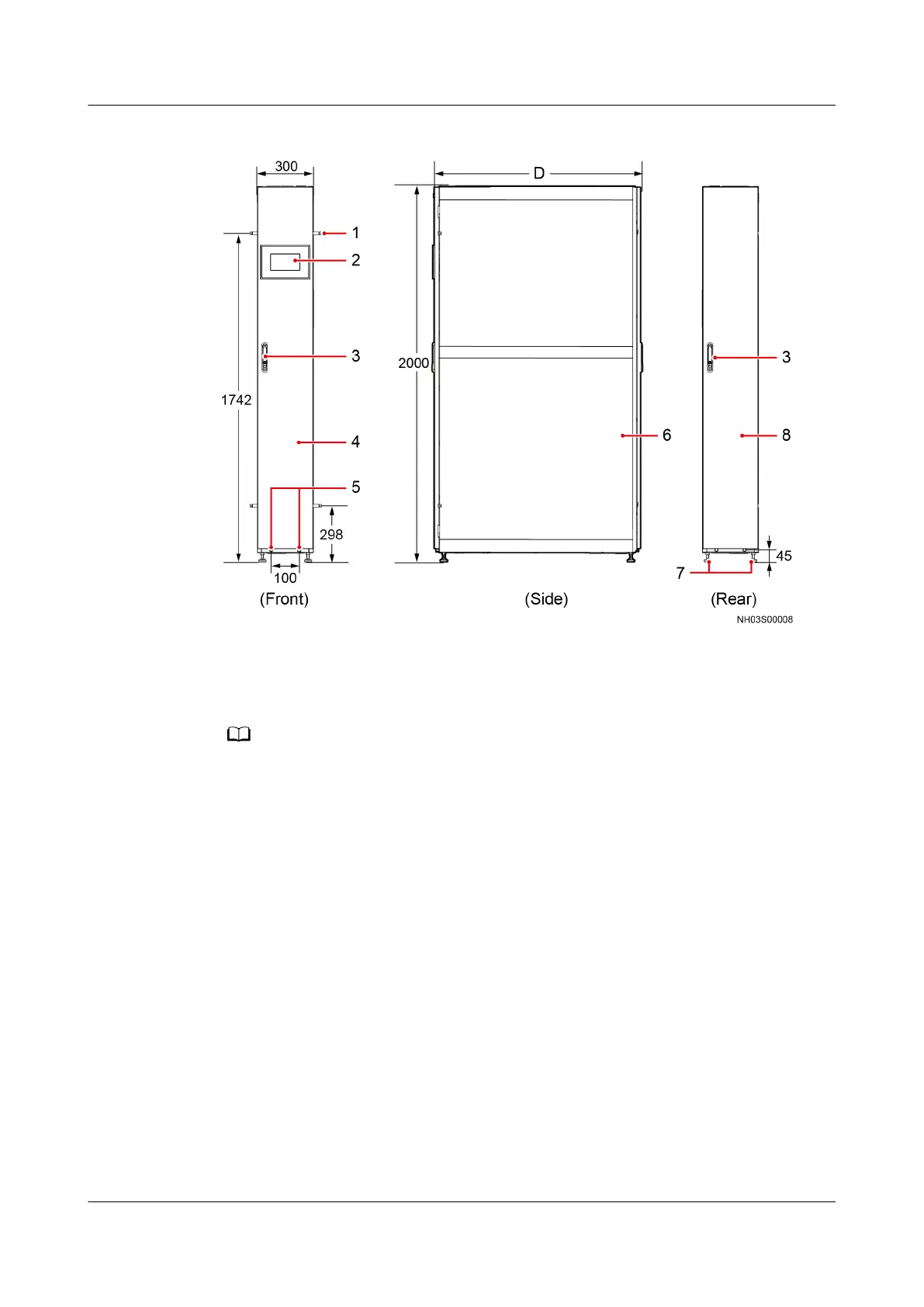

Figure 3-7 External structure (unit: mm)
(1) Connecting kits (2) Control panel (3) Door lock (4) Front door
(5) Fixing port (6) Side panel (7) Leveling foot (8) Rear door
In the gure, D is the depth of the cabinet. It can be 1100 mm or 1200 mm.
3.1.5 Installation Layout Principles
Layout principles for installing the NetCol5000-A are as follows:
● If the outdoor unit is placed higher than the indoor unit, the maximum
vertical distance between them is 20 m. To ensure the NetCol5000-A
reliability, make an oil trap every 5 m to 6 m along pipes in the vertical
direction.
● If the indoor unit is placed higher than the outdoor unit, the maximum
vertical distance between them is 5 m.
NetCol5000-A025 In-row Air Cooled Smart Cooling
Product
User Manual (300 mm Width) 3 Installation Guide
Issue 15 (2020-12-10) Copyright © Huawei Technologies Co., Ltd. 40
