6 System Operation and Maintenance
6.1 Components
Figure 6-1 and Figure 6-2shows the positions of the components to be
maintained.

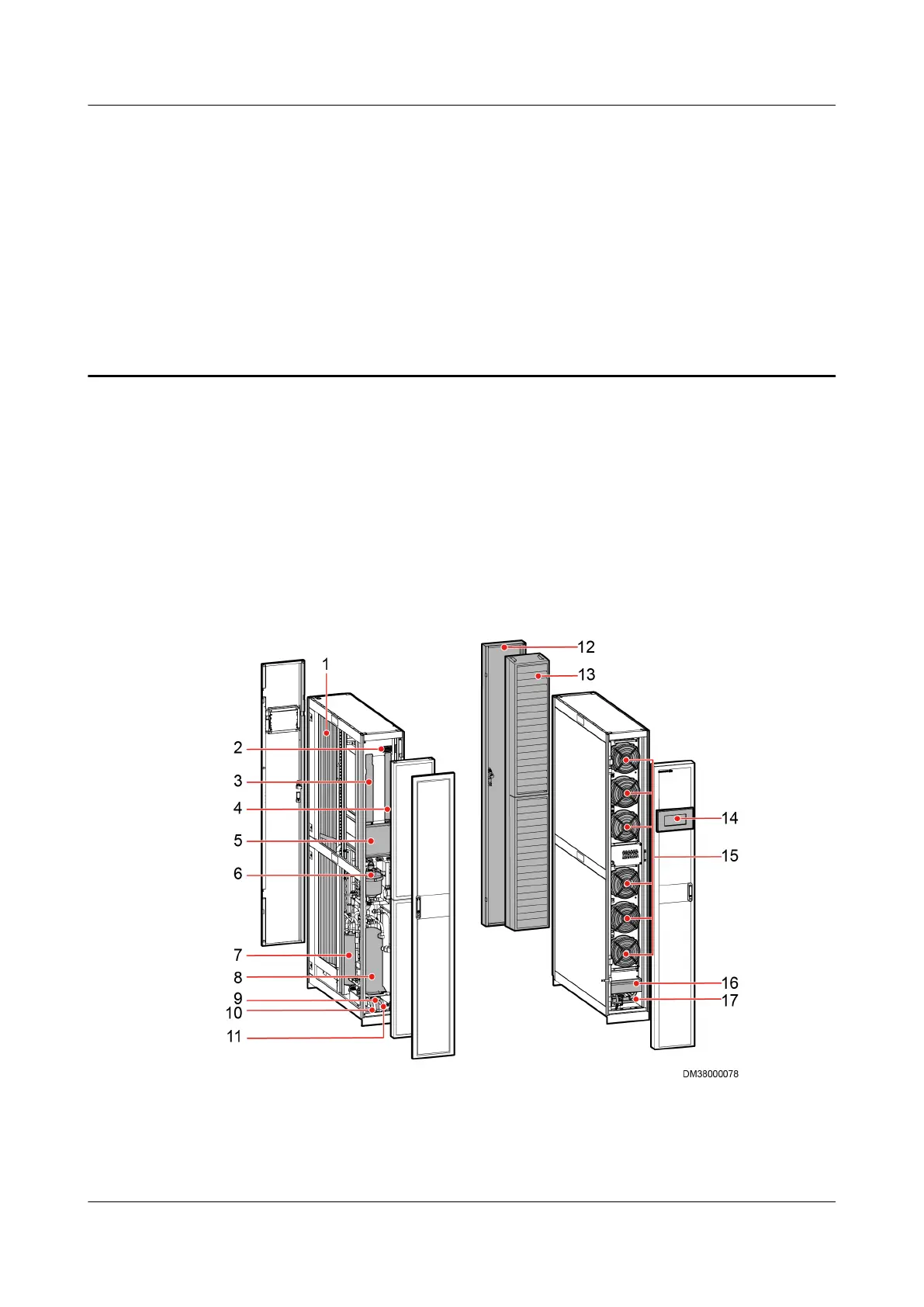

Figure 6-1 Components to be maintained(model with an electrode
humidier)
(1) Evaporator
(2) External signal port (3) Electric control box
(4) Module subrack (5) Compressor drive (6) Electrode humidier
(7) Oil separator (8) Compressor (9) Drainpipe
(10) Refrigerant gas pipe (11) Refrigerant liquid pipe (12) Rear door
