4. Reinstall the water pan cover.
Step 3 Close the front and the rear doors.
----End
3.7 Installation Flowchart

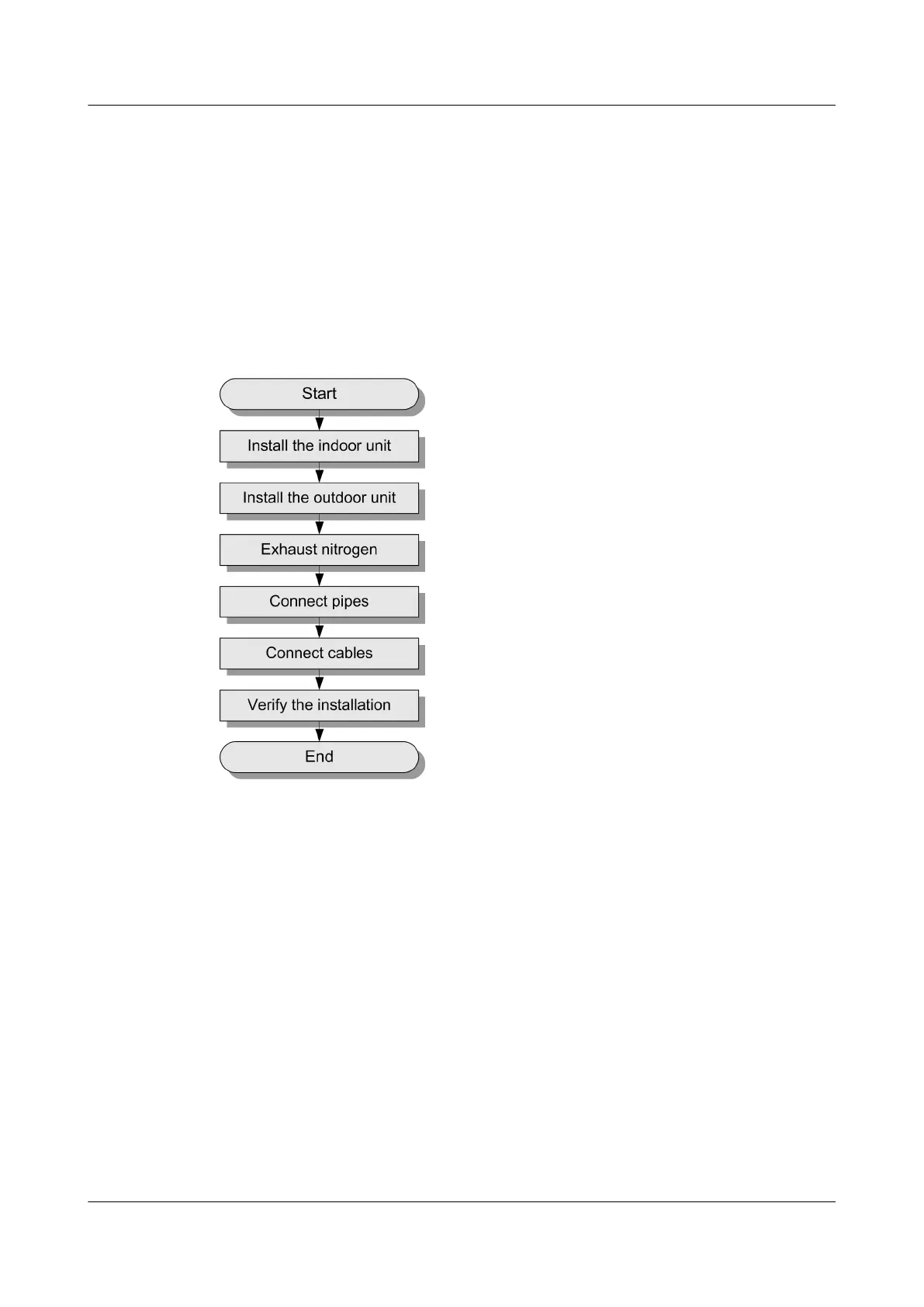

Figure 3-22 shows the NetCol5000-A installation owchart.
Figure 3-22 Installation owchart
3.8 Installing the Indoor Unit
3.8.1 Preparing Knock-out Holes
Procedure
Step 1 Mark cable holes on the oor based on the sizes of cable holes at the bottom of
the indoor unit, as shown in Figure 3-23. Then drill the cable holes in the
oor.
NetCol5000-A025 In-row Air Cooled Smart Cooling
Product
User Manual (300 mm Width) 3 Installation Guide
