B Layout of the Cooling System
A complete cooling system is composed of the indoor unit NetCol5000-A and
outdoor unit NetCol500. Figure B-1 shows the layout of the components in the
cooling system.

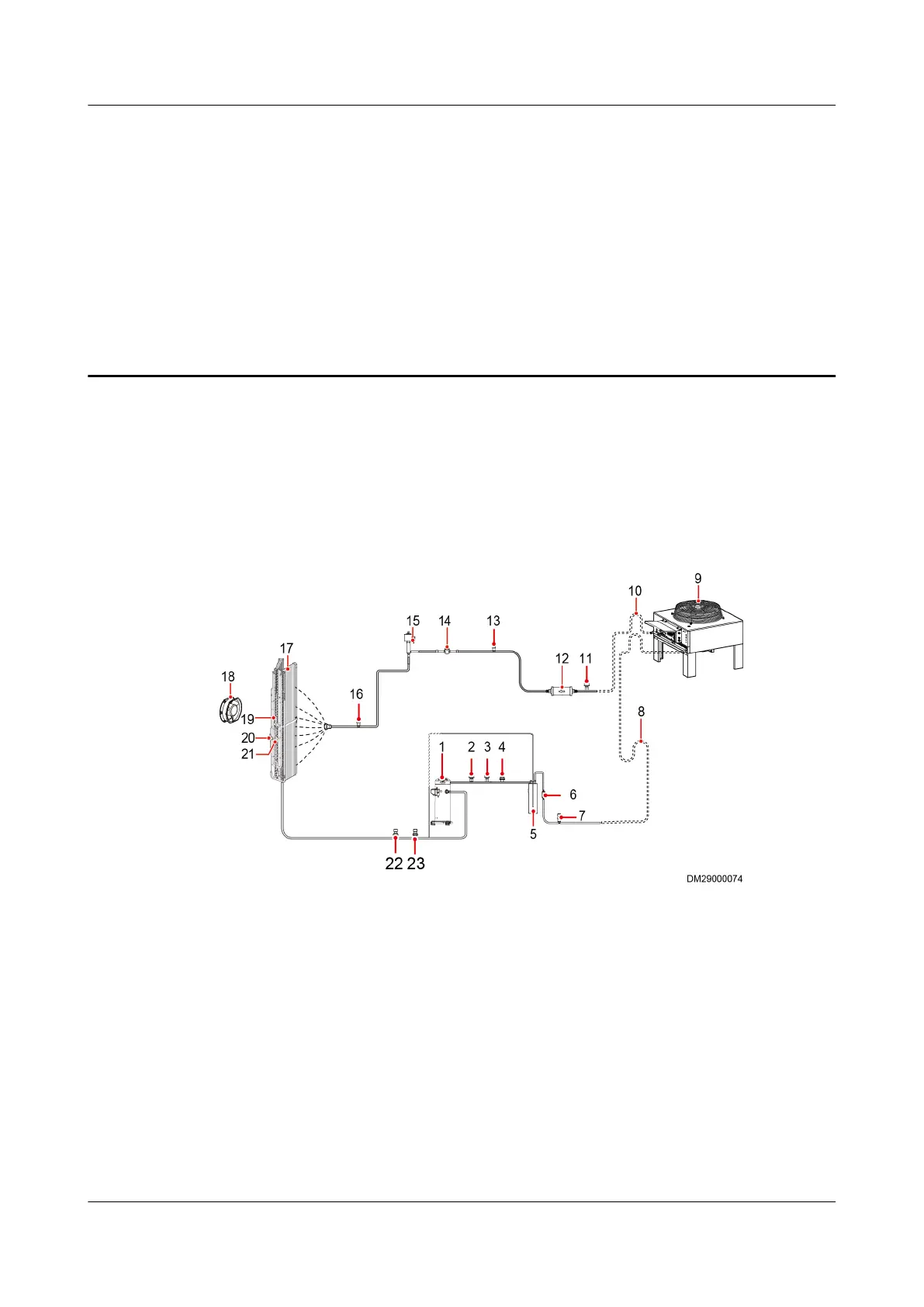

Figure B-1 Layout of the Cooling System
(1) Compressor
(2) High pressure sensor (3) Discharge temperature
sensor
(4) High pressure switch (5) Oil separator (6) Check valve
(7) Discharge pipe needle
valve
(8) Oil trap (9) Outdoor unit
(10) Inverted trap (11) Liquid pipe needle valve (12) Filter dryer
(13) Liquid pipe temperature
sensor
(14) Sight glass (15) Electronic expansion valve
(16) Low-pressure needle valve (17) Evaporator (18) Indoor fan
(19) Distributor (20) Capillary tube (21) Solenoid valve
