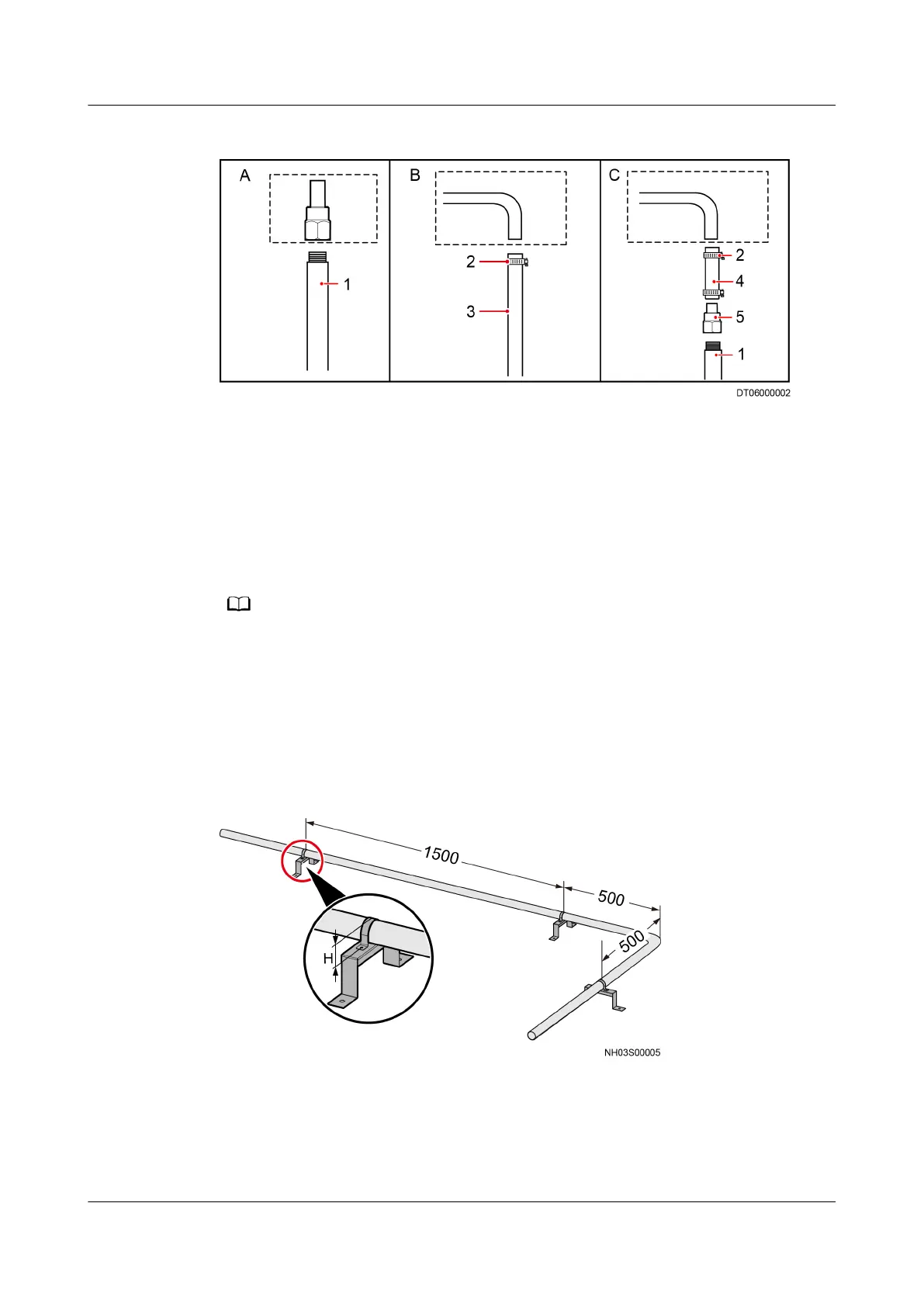

Figure 3-4 Connecting a drainpipe
(1) Rigid pipe: 1/2-inch BSPT, external thread,
made of PP-R, C-PVC, or other materials
(2) Hose clamp
(3) Hose: inner diameter of 14 mm, made of
EPDM or other materials
(4) Hose delivered with the ttings
(5) Rigid pipe conversion adapter: 5/8-inch
outer diameter, adapting for 1/2-inch BSPP
internal thread connection
Components inside the dashed-line boxes are ports on the equipment. Components 2, 4,
and 5 are mandatory. Other components are subject to engineering procurement.
3.1.2.6 Pipe Support
Figure 3-5 shows supports for refrigerant pipes and water pipes. The actual
appearance of the supports will be dierent based on onsite situations.
Figure 3-5 Pipe supports (unit: mm)
NetCol5000-A025 In-row Air Cooled Smart Cooling
Product
User Manual (300 mm Width) 3 Installation Guide
Issue 15 (2020-12-10) Copyright © Huawei Technologies Co., Ltd. 35
