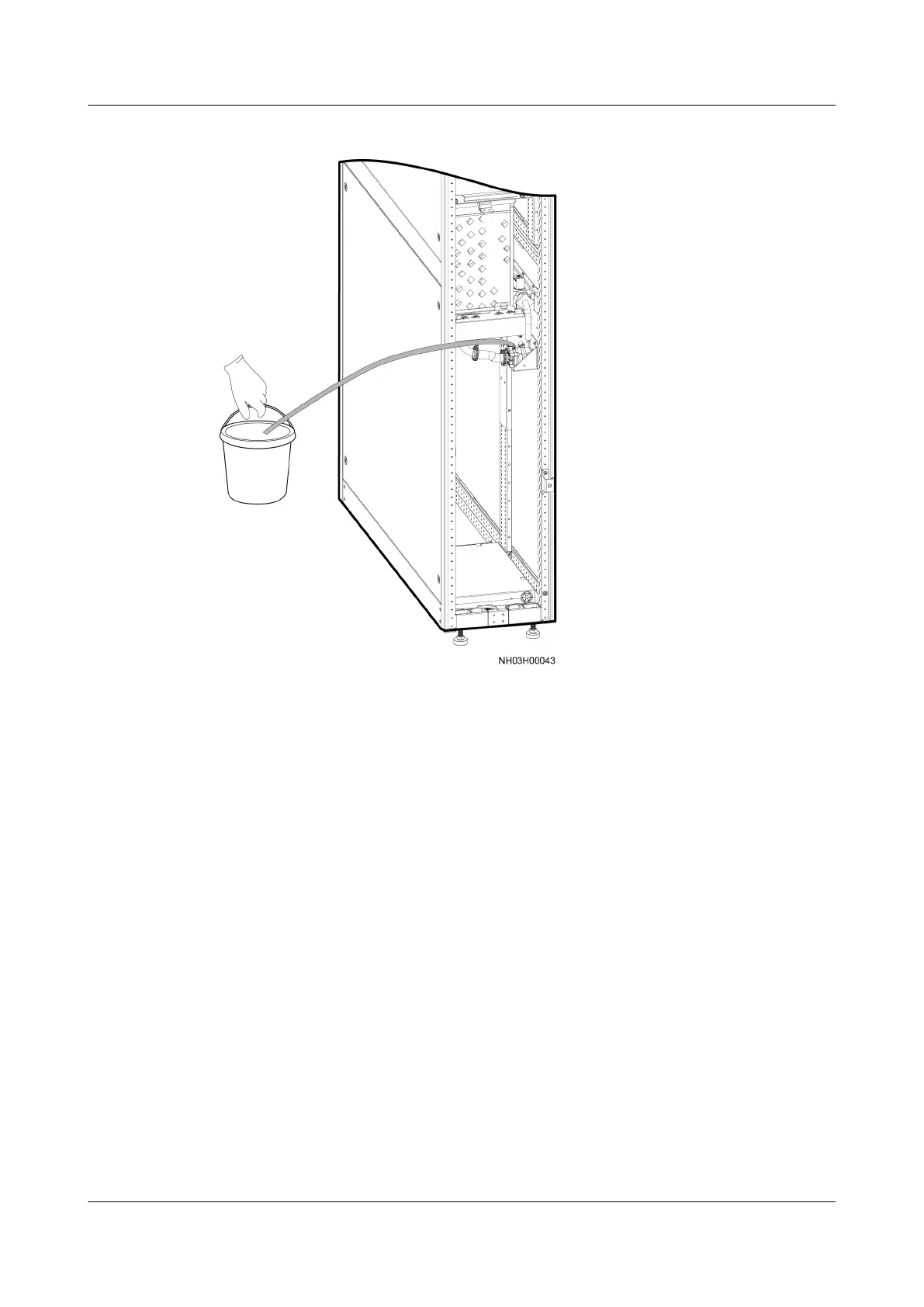

Figure 6-19 Draining water from the humidier water pump
Step 6 Remove the humidier water pan oat.
Step 7 Remove the screws connecting the humidier fasteners and driver, remove the
humidier fasteners, loosen the two buttery nuts, remove the liquid level
detector, move the wet lm horizontally to the left, and pull out the humidier.
