13. Symbol Edit
(Excluding the positioner mode of the SSEL, ASEL and PSEL controller.)
192
177
(6) Output Port

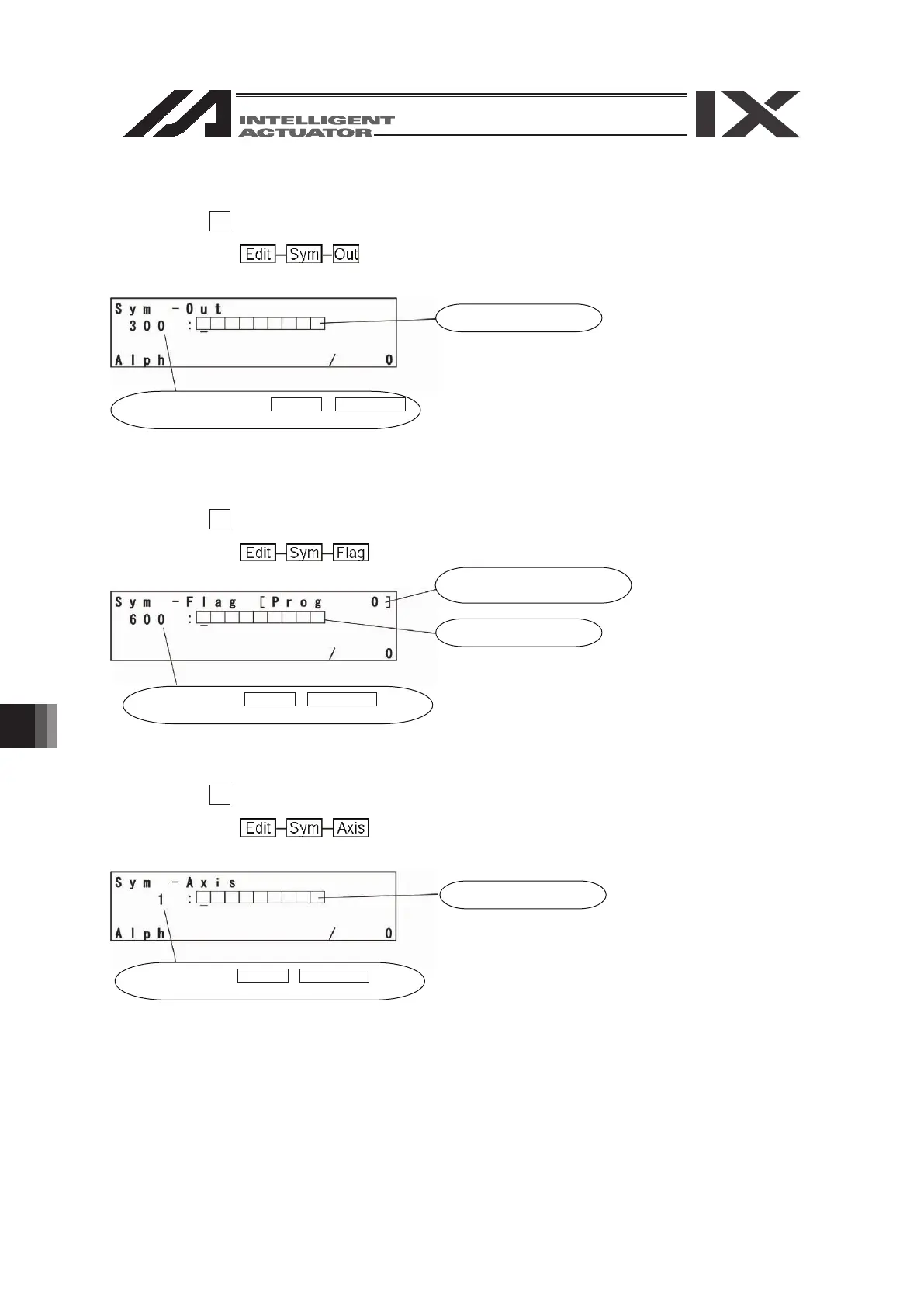

Select the F2 (Out) key on the symbol edit item screen.
Mode Transition:
Output Port No. Symbol Edit Screen
(7) Flag
Select the F3 (Flag) key on the symbol edit item screen.
Mode Transition:
Flag No. Symbol Edit Screen
(8) Axis
Select the F4 (Axis) key on the symbol edit item screen.
Mode Transition:
Axis No. Symbol Edit Screen
Input alphabet and number.
Input output port No. by the PAGE UP · PAGE DOWN
ke
y
s or 10 ke
y
s.
Input alphabet and number.
Input flag No. by the PAGE UP · PAGE DOWN keys o
r
10 ke
y
s.
Input program No. at local area.
Input 0 at
g
lobal area.
Input alphabet and number.
Input axis No. by the PAGE UP · PAGE DOWN keys o
r
10 ke
y
s.
