16. Controller

258

Emergency stop input and adjusting jig set

Press the EMERGENCY STOP button.

Press the brake release switch to release the

brake.

After fixing the adjusting jig as shown in the

standard position figure, press the F1 (OK) key.

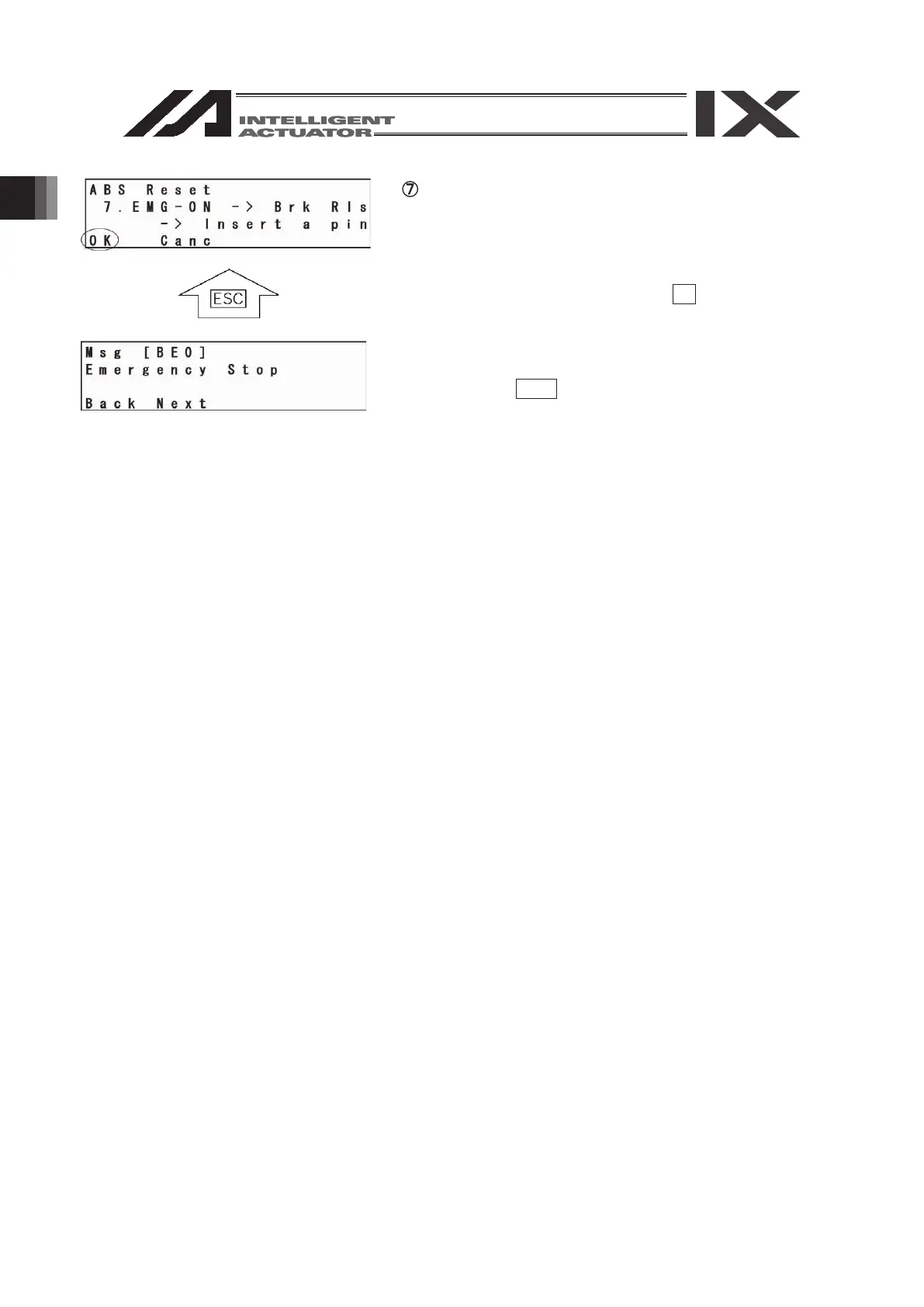

Inputting emergency stop displays the screen at

the left.

Pressing the ESC key returns the display to the

previous screen.
