IAI SEL User Manual

7. Simple Operation Procedure
63
53
④

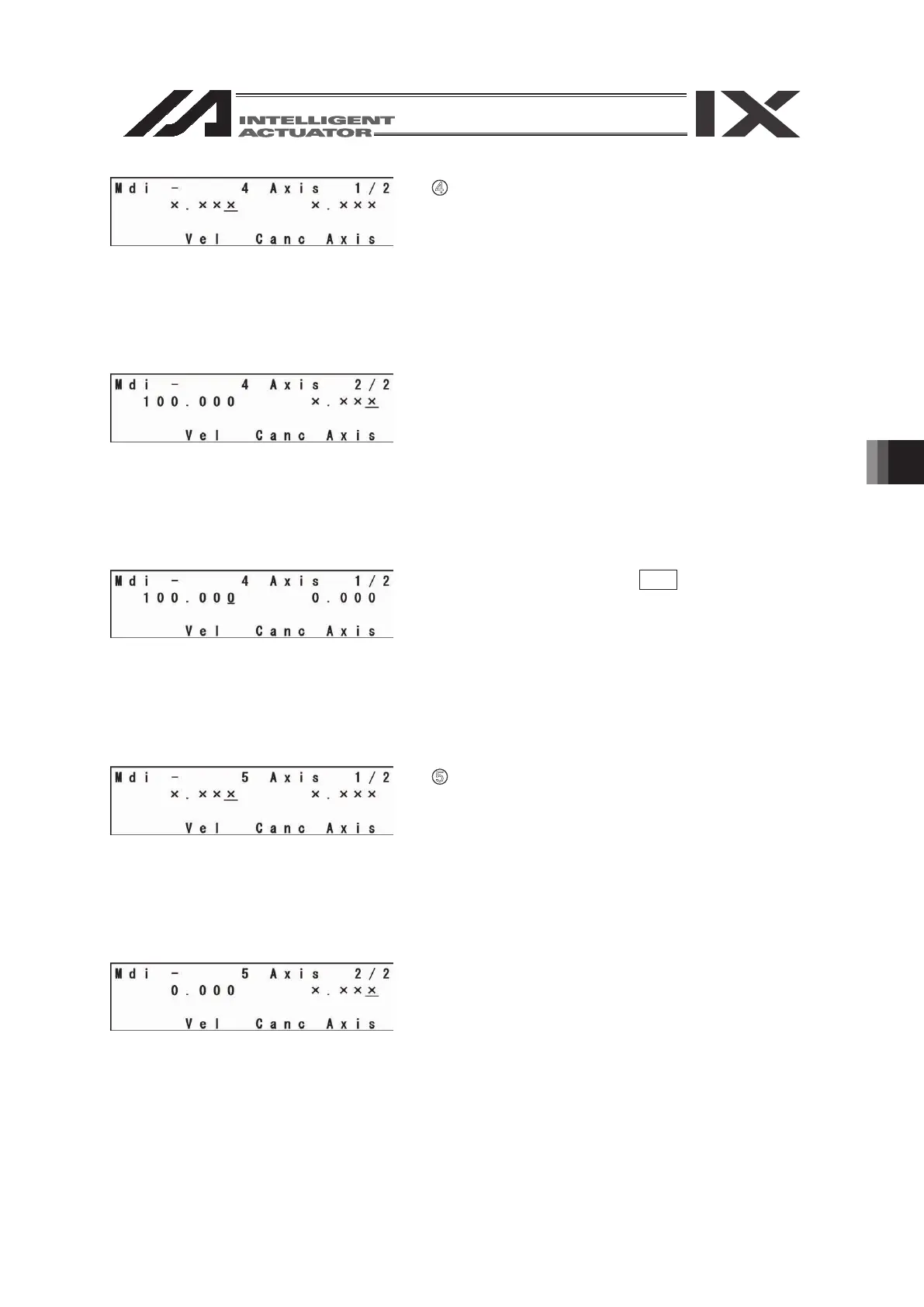

Data input for the fourth point
Input 100 for the first axis position data and press
the return key.
Input 0 for the second position data and press the
return key.
Transmit the data with the WRT key and move to
position No. 5.
⑤
Data input for the fifth point
Input 0 for the first axis position data and press the
return key.
Input 0 for the second axis position data and press
the return key.

IAI SEL Specifications

General

Protection Class	IP20
Communication	RS-232C
Control Method	PTP
Number of Axes	Up to 4 axes
Vibration Resistance	4.9 m/s² (0.5 G)
Humidity	20 to 85% RH (non-condensing)
