8. To Insert a SAS or USB Interface Assembly into the rear panel slot, insert the

tab on the back plate into the indent in the back panel opening 1, pull the

pin on the back plate 2 and push the back plate into the back panel opening

3 until it clicks into place.

9. Attach the Interface Assembly connector 1 to the re-driver card or converter

card connector. Attach the power connector 2. Ensure that the Interface

Assembly and cables are routed under the cross bar 3.

ROLSOS873-0

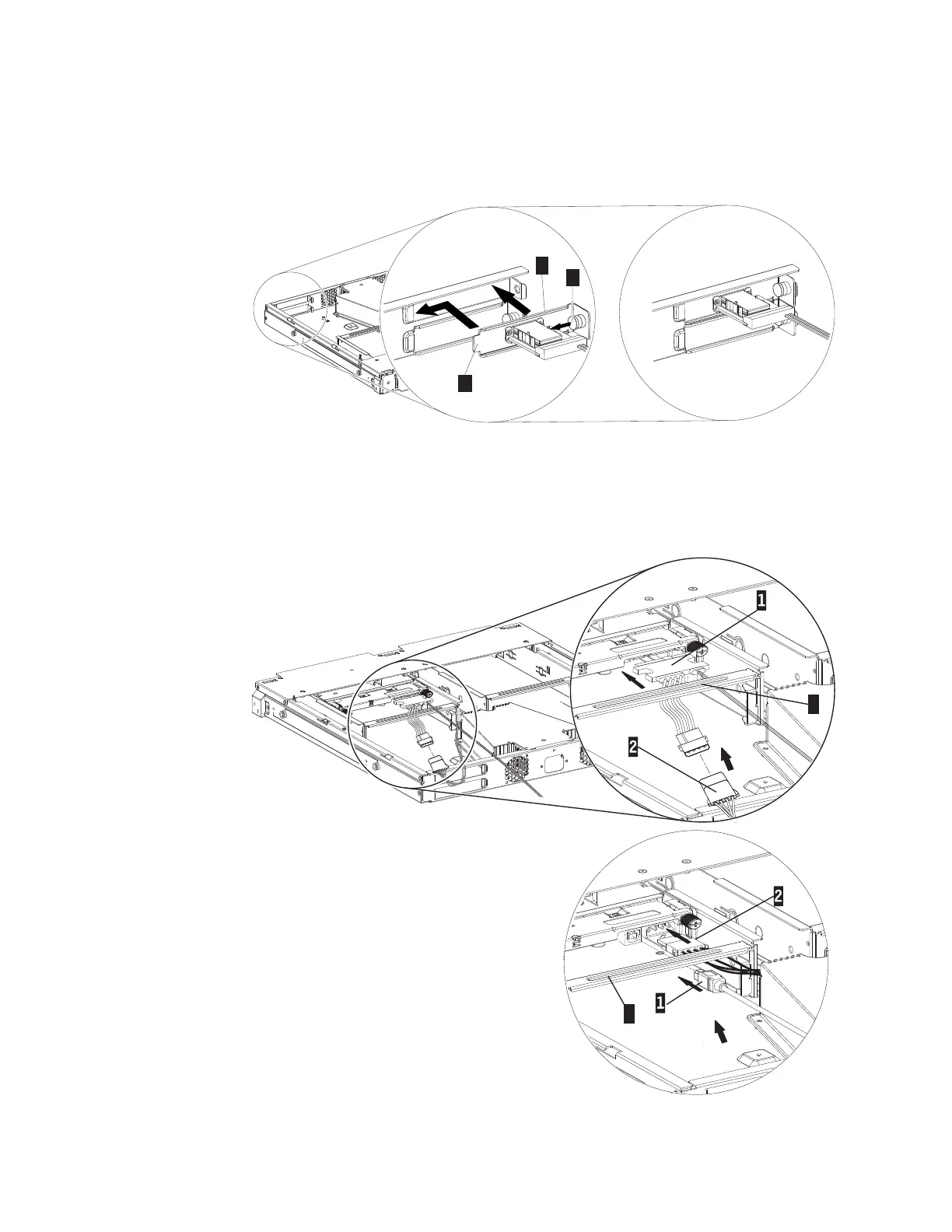

Figure 62. Insert Interface Assembly Back Plate

ROLG070b-0

SAS

USB

Figure 63. Connect Interface Assembly and power connector

144 7226 Storage Device Enclosure Setup, Operator and Service Guide
