5. To install the new SATA/SAS Re-driver card or SATA/USB Converter card,

align the card slides with the slots on the rear of the slim drive tray. Slide the

card into position in the rear of the Slim tray 1. Tighten the thumbscrews

2.

6. Attach the Drive Latch 1 to the Slim Tray Assembly 2 and insert both into

the drive bay until they click into place.

ROLSOS868-0

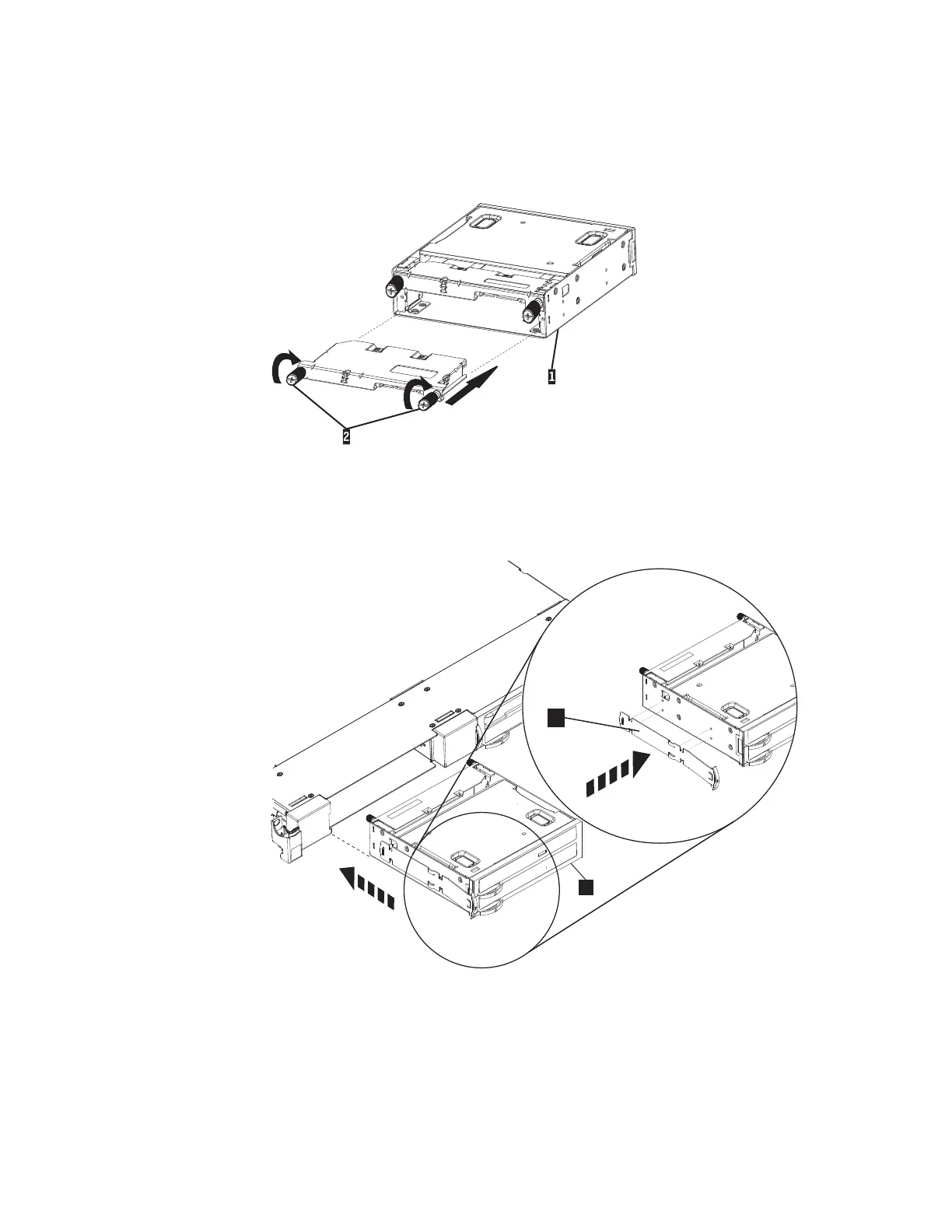

Figure 65. Install the SATA/SAS re-driver card or SATA/USB converter card

ROLSOS869-0

Figure 66. Install Slim Tray Assembly

Chapter 11. Installation and Removal Procedures 147
