7. To remove the Blank Back Plate, pull the back plate pin 1 to release the
Blank Back Plate, and remove the Blank Back Plate 2 from the rear panel
slot.
8. To Insert the SAS Interface Assembly or USB Interface Assembly into the rear
panel slot, insert the tab on the back plate into the indent in the back panel
opening 1, pull the pin on the back plate 2 and push the back plate into
the back panel opening 3 until it clicks into place.
ROLSOS855-0
1
2

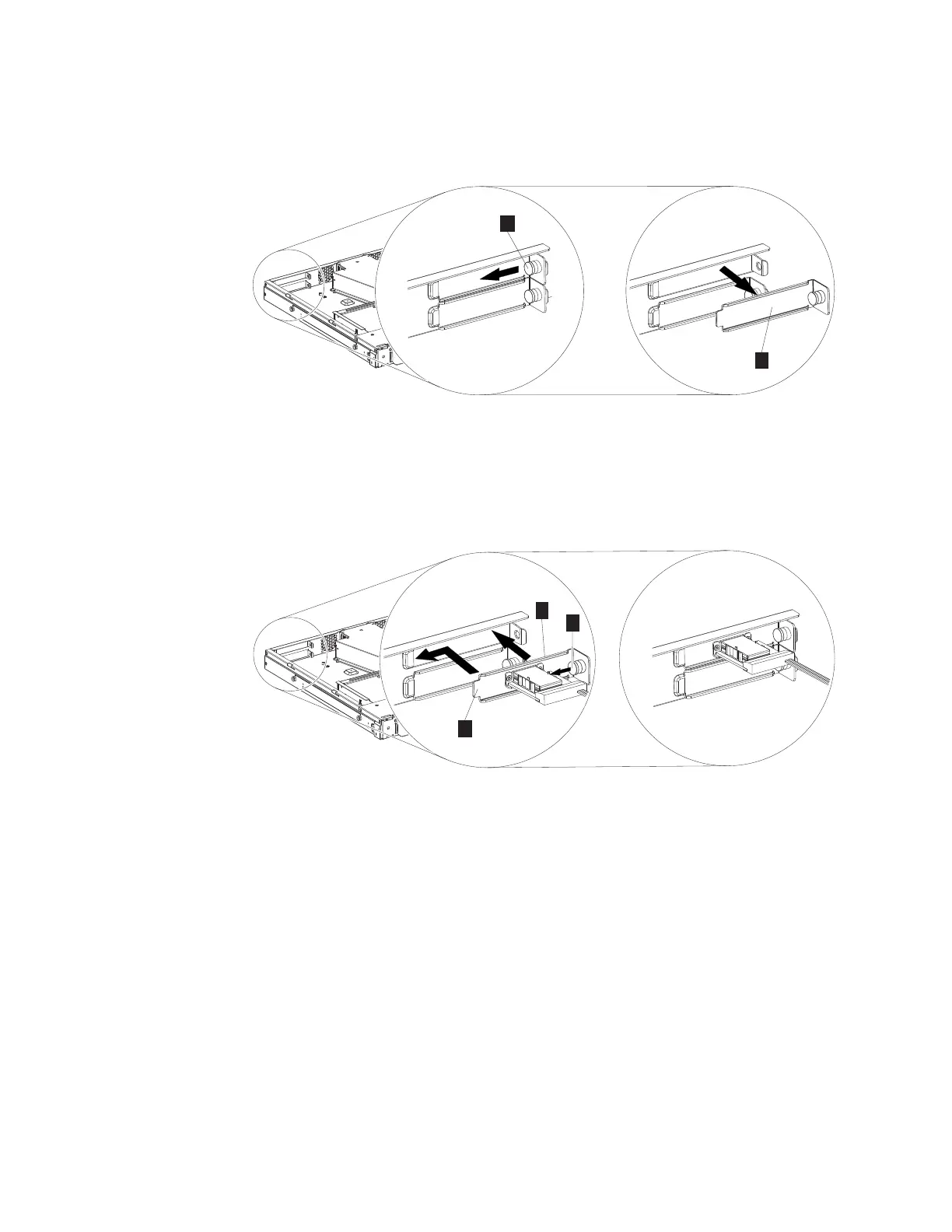

Figure 67. Remove Black Back Plate
ROLSOS873-0
1
2
3
Figure 68. Insert Interface Assembly Back Plate
148 7226 Storage Device Enclosure Setup, Operator and Service Guide
