IEI Technology IMBA-8650 User Manual

IMBA-8650 Motherboard
Page 80
CN Type: PS/2 connector
CN Location: See
Figure 4-21
CN Pinouts: See
Figure 4-22 and Table 4-22
The IMBA-8650 keyboard and mouse connectors are standard PS/2 connectors.

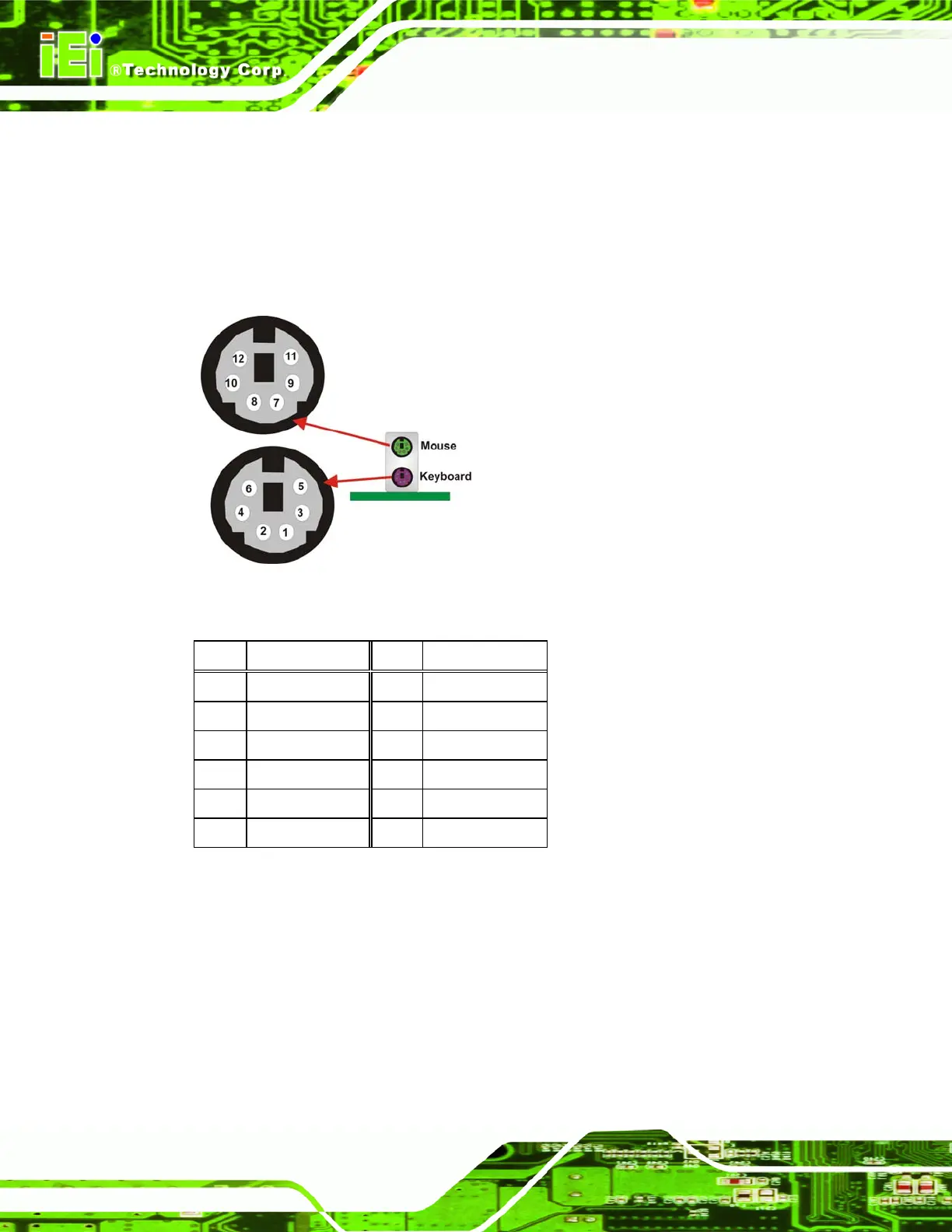

Figure 4-22: PS/2 Pinouts
PIN DESCRIPTION PIN DESCRIPTION
1 KBDA 7 MDA
2 N/C 8 N/C
3 GND 9 GND
4 5V 10 5V
5 KBCL 11 MCL
6 NC 12 NC
Table 4-22: PS/2 Connector Pinouts
4.3.2 Parallel Port Connector
CN Label: PRN1
CN Type: DB-25
CN Location: See
Figure 4-21
