IMBA-8650 Motherboard
Page 22

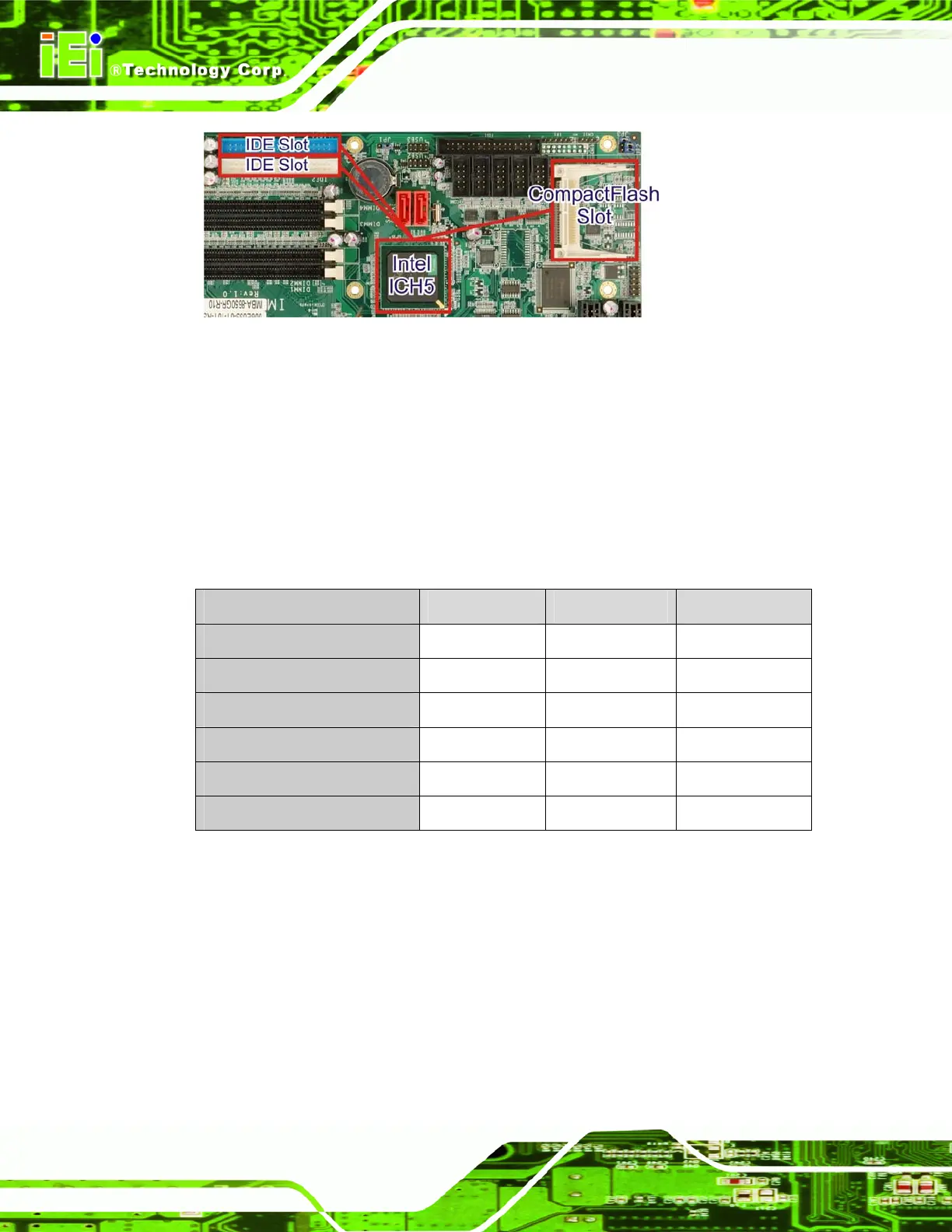

Figure 2-10: IDE Interface
The integrated IDE interface is able to support the following IDE HDDs:
Ultra ATA/100, with data transfer rates up to 100MB/s
Ultra ATA/66, with data transfer rates up to 66MB/s
Ultra ATA/33, with data transfer rates up to 33MB/s
Table 2-1 shows the supported HDD specifications.
Specification Ultra ATA/100 Ultra ATA/66 Ultra ATA/33
IDE devices 2 2 2
PIO Mode 0 – 4 0 – 4 0 – 4
PIO Max Transfer Rate 16.6 MB/s 16.6 MB/s 16.6 MB/s
DMA/UDMA designation UDMA 5 UDMA 4 UDMA 2
DMA/UDMA Max Transfer 100MB/s 66MB/s 33MB/s
Controller Interface 5V 5V 5V
Table 2-1: Supported HDD Specifications
2.6.4 Intel
®
ICH5 Low Pin Count (LPC) Interface
The ICH5 LPC interface complies with the LPC 1.1 specifications.
