Table 4-8: CD-In Connector
4.2.7 Compact Flash Socket
CN Label:
CF1
CN Type:
50-pin header (2x25)
CN Location:
See

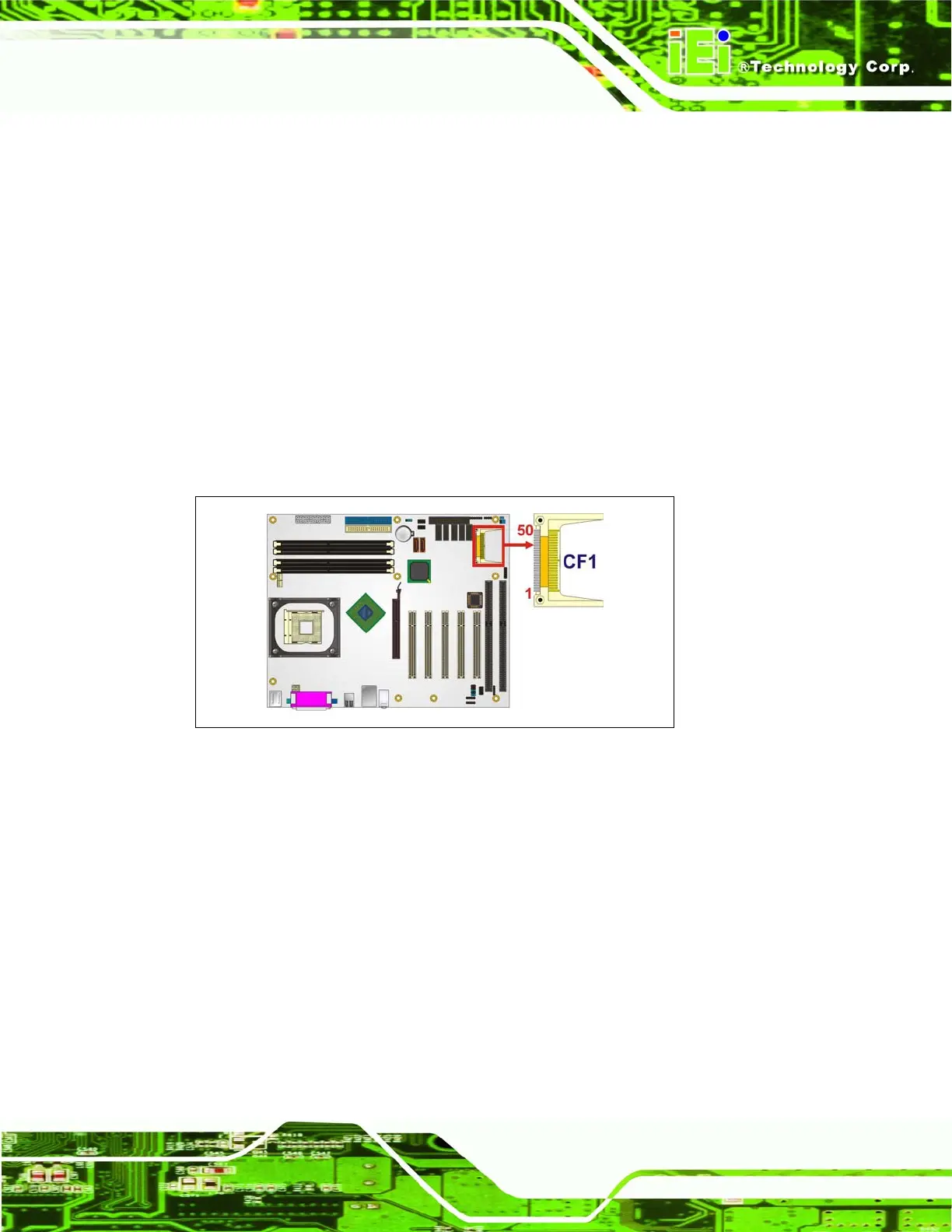

Figure 4-8
CN Pinouts:
See
Table 4-9
A CompactFlash® Type I or Type II memory card inserts into the CF socket on the
motherboard.
