IMBA-8650 Motherboard
Page 62

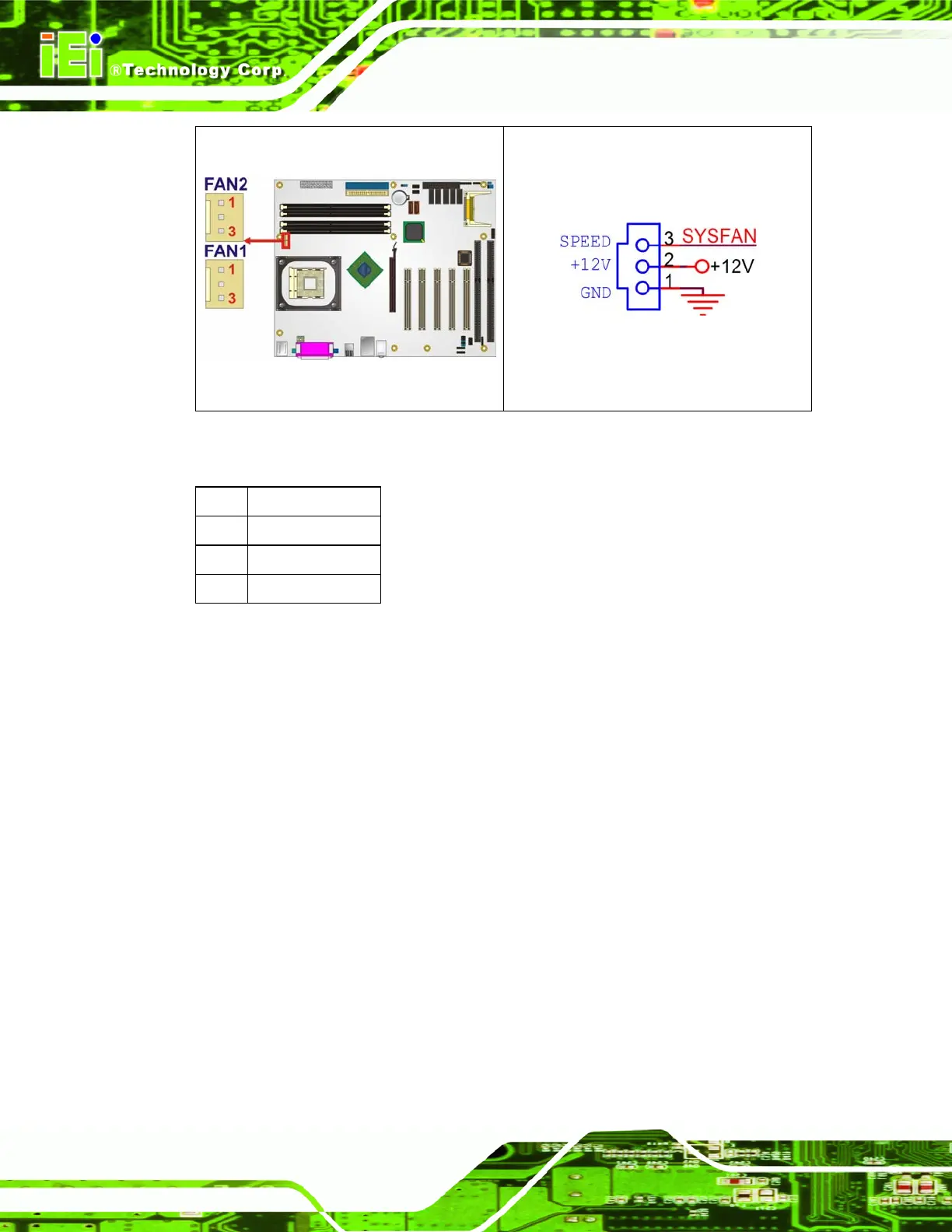

Figure 4-9: Fan Connectors Locations
PIN CPU_FAN1
1 GND
2 +12V
3 Rotation Signal
Table 4-10: Fan Connectors Pinouts
4.2.9 Floppy Disk Connector
CN Label:
FDD1
CN Type:
34-pin header (2x17)
CN Location:
See
Figure 4-10
CN Pinouts:
See
Table 4-11
The floppy disk connector is connected to a floppy disk drive.
