IMBA-8650 Motherboard
Page 79
PIN DESCRIPTION PIN DESCRIPTION
3 USBPB- 4 USBPB+
5 USBPA+ 6 USBPB-
7 GND 8 PWR (+5V)
Table 4-21: USB Port Connector Pinouts
4.3 External Peripheral Interface Connectors
The external peripheral interface connectors on the back panel are connected to devices
externally when the IMBA-8650 is installed in a chassis. The peripheral connectors on the
rear panel are:
1 x Keyboard/mouse connector
1 x Parallel port connector
1 x Serial port connector
1 x VGA connector
4 x USB 2.0 connectors
1 x RJ-45 Ethernet connector
3 x Audio jacks

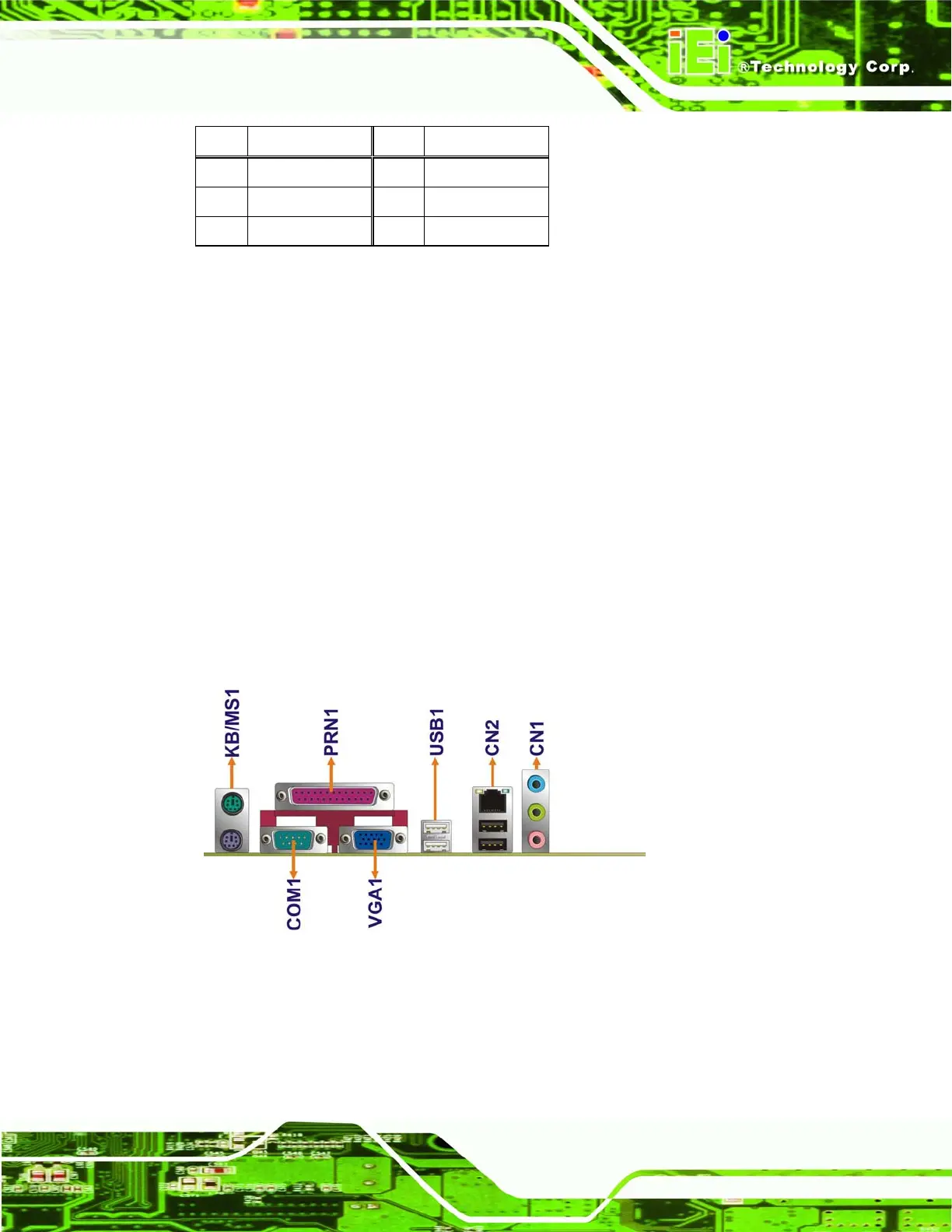

Figure 4-21: IMBA-8650 External Interface Connectors
4.3.1 Keyboard/Mouse Connector
CN Label: KB/MS1
