PIN DESCRIPTION PIN DESCRIPTION
1 VCC 2 SPK
3 GND 4 N/C
5 5VDU 6 N/C
7 SPSW 8 VCC
9 VCC 10 RST-
11 HDLED- 12 GND
Table 4-12: Front Panel Connector Pinouts

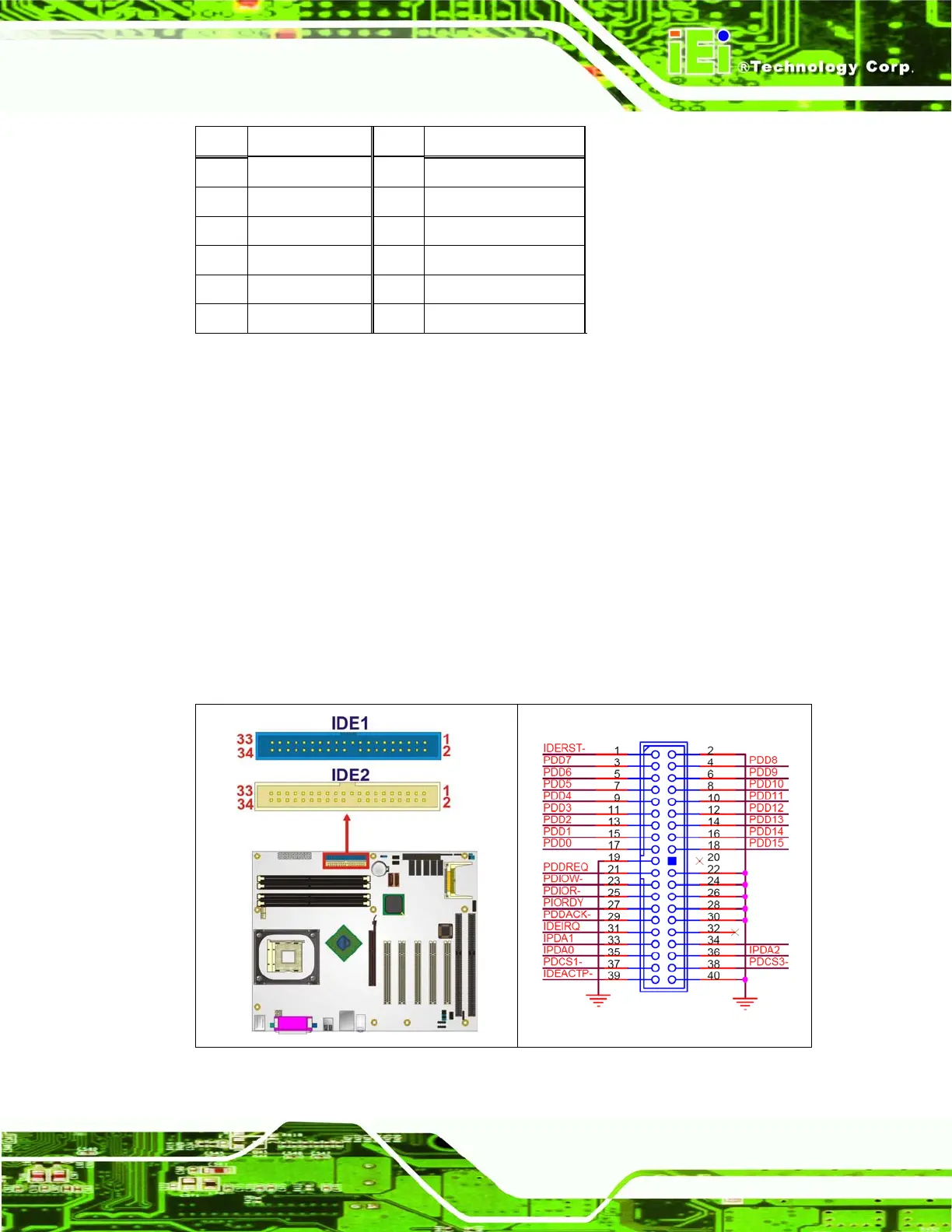

4.2.11 IDE Connector (40-pin)
CN Label:
IDE1, IDE2
CN Type:
40-pin box header (2x20)
CN Location:
See
Figure 4-12
CN Pinouts:
See
Table 4-13
One 40-pin IDE device connector on the IMBA-8650 supports connectivity to two hard disk
drives.
Figure 4-12: IDE Device Connector Locations
