IMBA-8650 Motherboard

Page 115

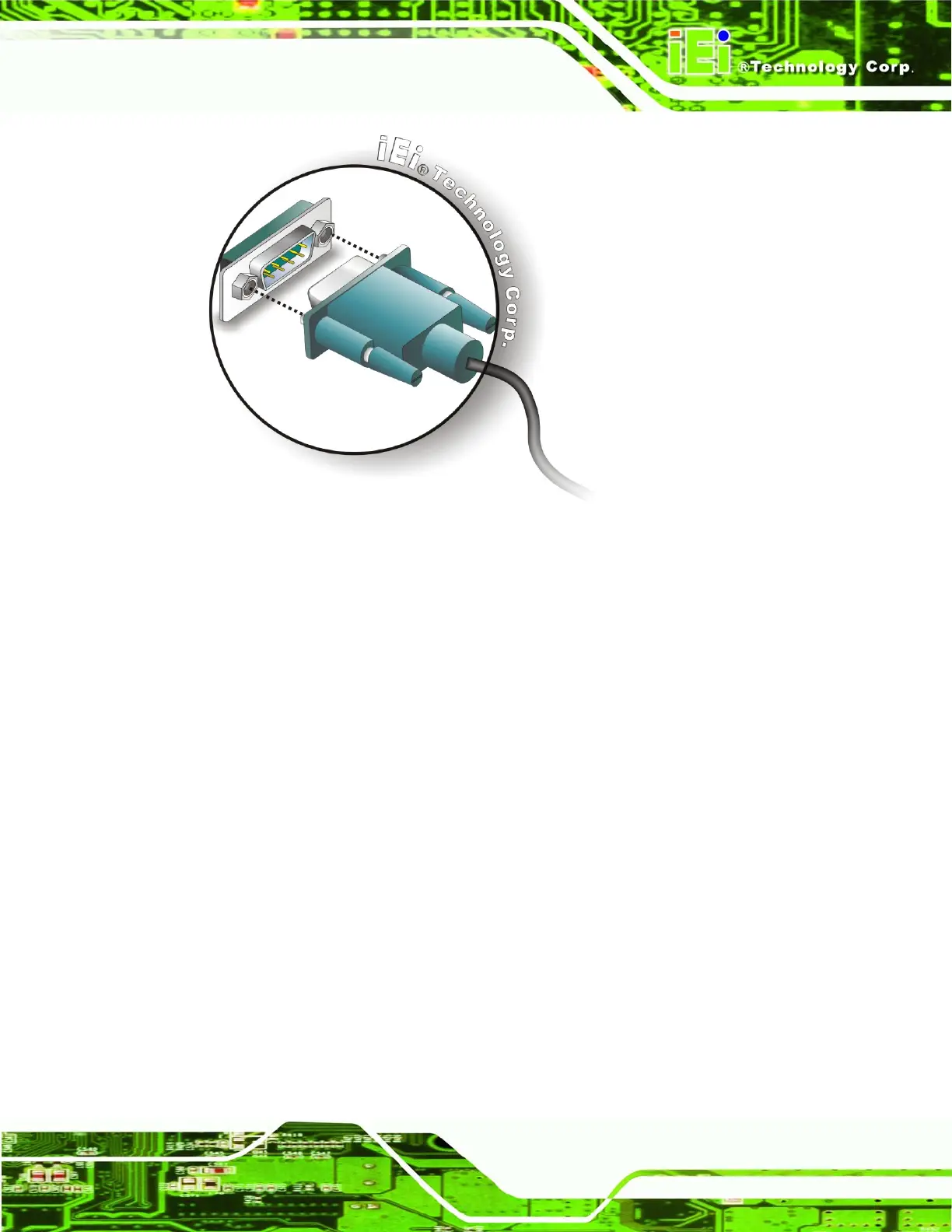

Figure 5-20: Serial Device Connector

Step 3: Secure the connector. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

Step 0:
