IMBA-8650 Motherboard
Page 34
2.8.3.5 Super I/O Parallel Port
The Super I/O parallel port (LPT) supports standard mode, enhanced mode and
high-speed mode parallel port devices.

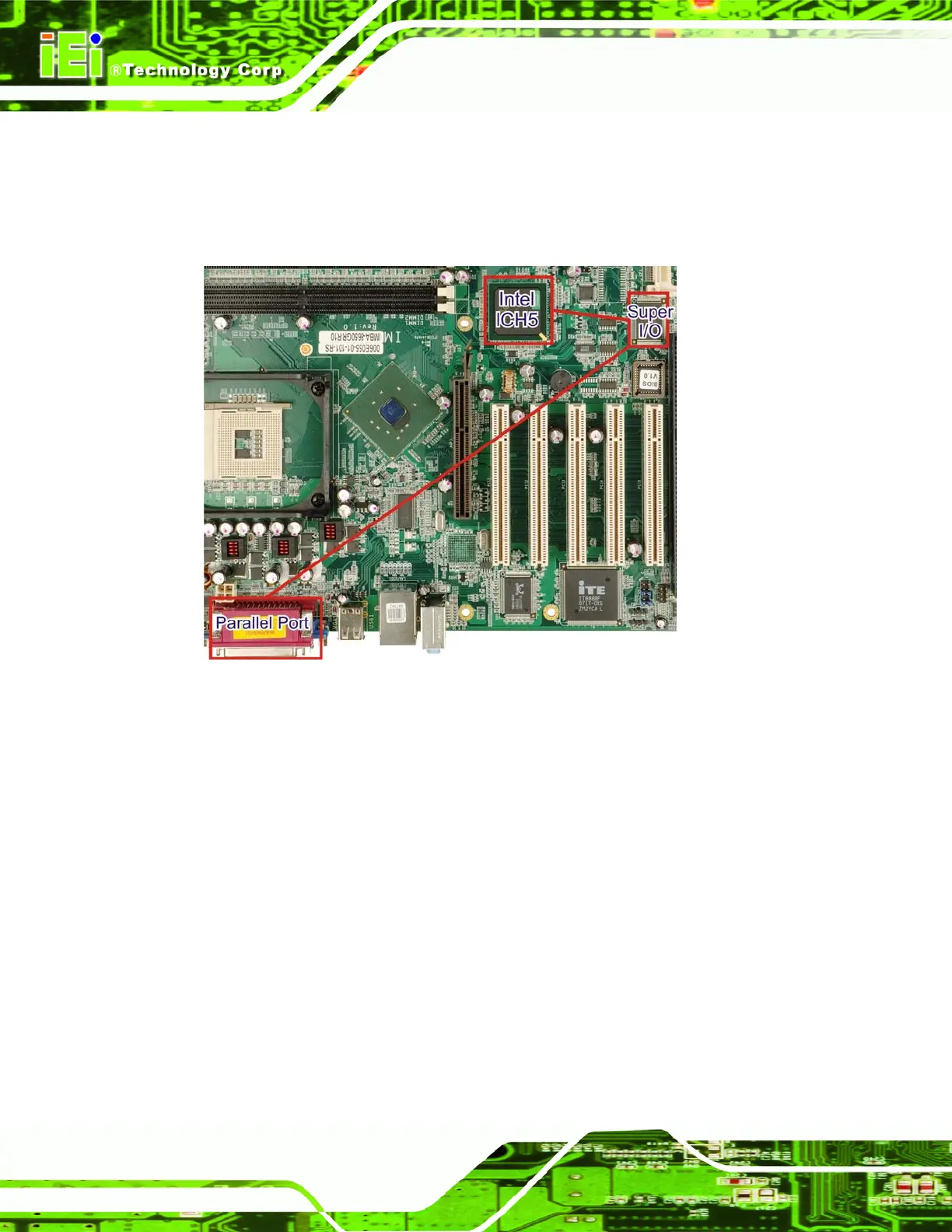

Figure 2-21: Super I/O Parallel Port
The LPT is compliant with the following LPT modes.
Standard mode
o Bi-directional SPP compliant
Enhanced mode
o EPP, IEEE 1284 compliant
High-speed mode
o ECP, IEEE 1284 compliant
2.8.3.6 Super I/O Infrared
The onboard Super I/O supports the following infrared specifications:
IrDA version 1.0 SIR protocol with a maximum baud rate up to 115.2Kbps
