IMBA-8650 Motherboard
Page 28
Supports IEEE 802. IP Layer 2 Priority Encoding
Supports IEEE 802. IQ VLAN tagging
Serial EEPROM
3.3V signaling, 5V PCI I/O tolerant
Transmit/Receive FIFO support
Supports power down/link down power saving
Supports PCI Message Signaled Interrupt (MSI)
2.7.4 ITE IT8888F PCI-to-ISA Bridge Chipset
An ITE IT8888F PCI to ISA bridge single function device enables legacy ISA card
expansion on the backplane. The PCI to ISA bridge is shown in
Figure 2-16.

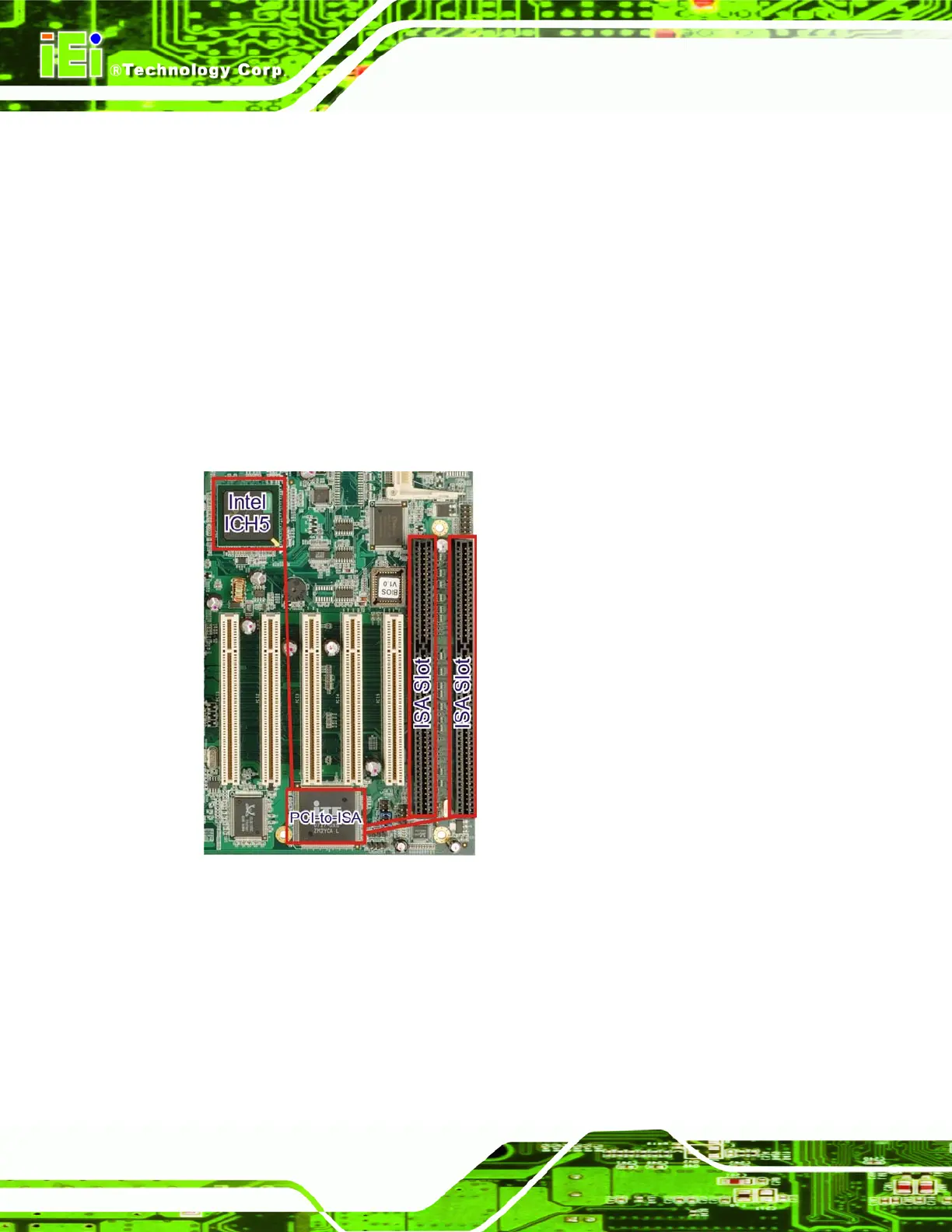

Figure 2-16: PCI-to-ISA Bridge
The IT8888F has a PCI specification v2.1 compliant 32-bit PCI bus interface and supports
both PCI Bus master and slave. The PCI interface supports both programmable positive
and full subtractive decoding schemes. Some of the features of the IT8888F PCI to ISA
bridge are listed below.
PCI Interface
