IMBA-8650 Motherboard
Page 78
PIN DESCRIPTION
5 SPDIF IN
Table 4-20: SPDIF Connector Pinouts
4.2.19 USB Connectors (Internal)
CN Label: USB2, USB3
CN Type:
8-pin header (2x4)
CN Location:
See
Figure 4-20
CN Pinouts:
See
Table 4-21
The 2x4 USB pin connectors each provide connectivity to two USB 1.1 or two USB 2.0
ports. Each USB connector can support two USB devices. Additional external USB ports
are found on the rear panel. The USB ports are used for I/O bus expansion.

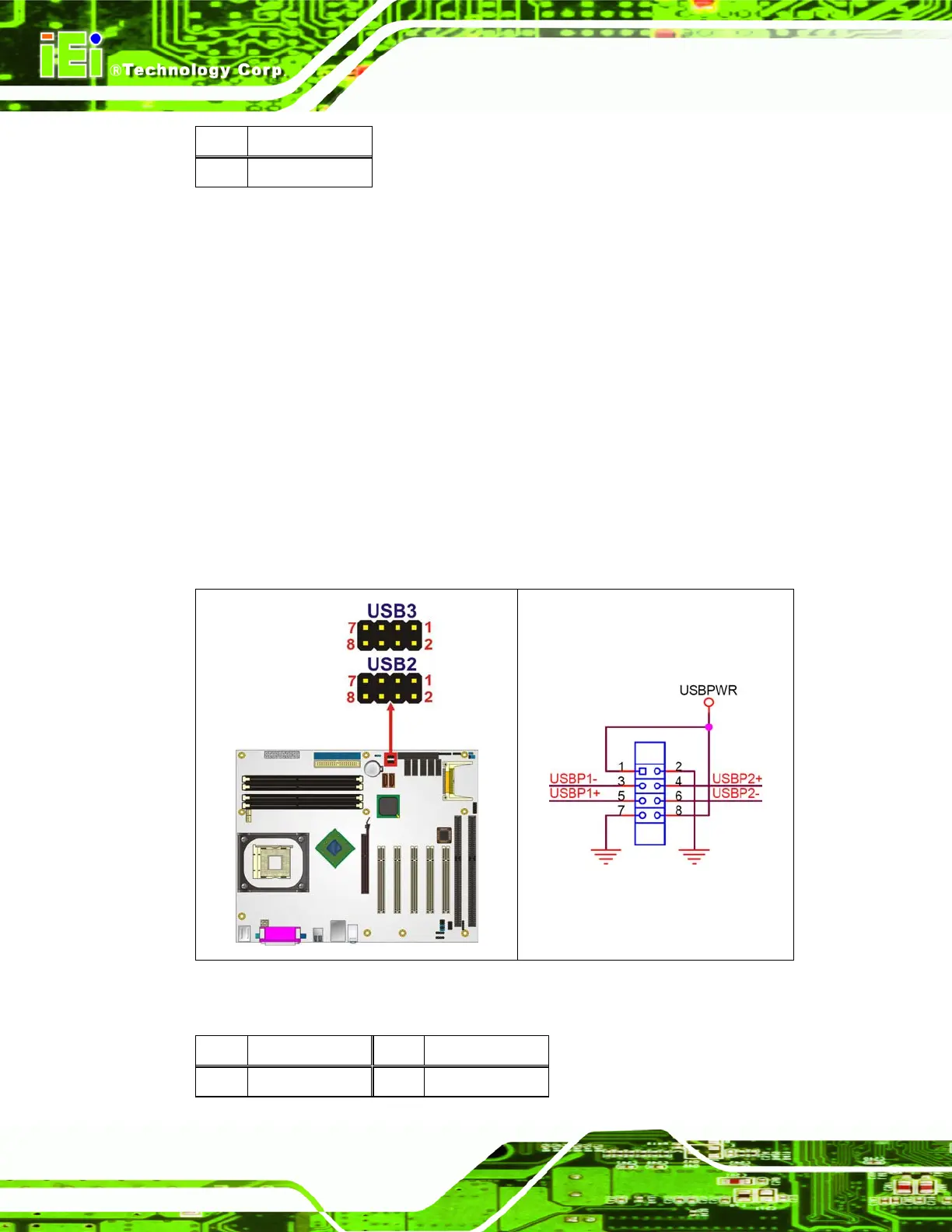

Figure 4-20: USB Connector Pinout Locations
PIN DESCRIPTION PIN DESCRIPTION
1 PWR (+5V) 2 GND
