IMBA-8650 Motherboard
Page 106

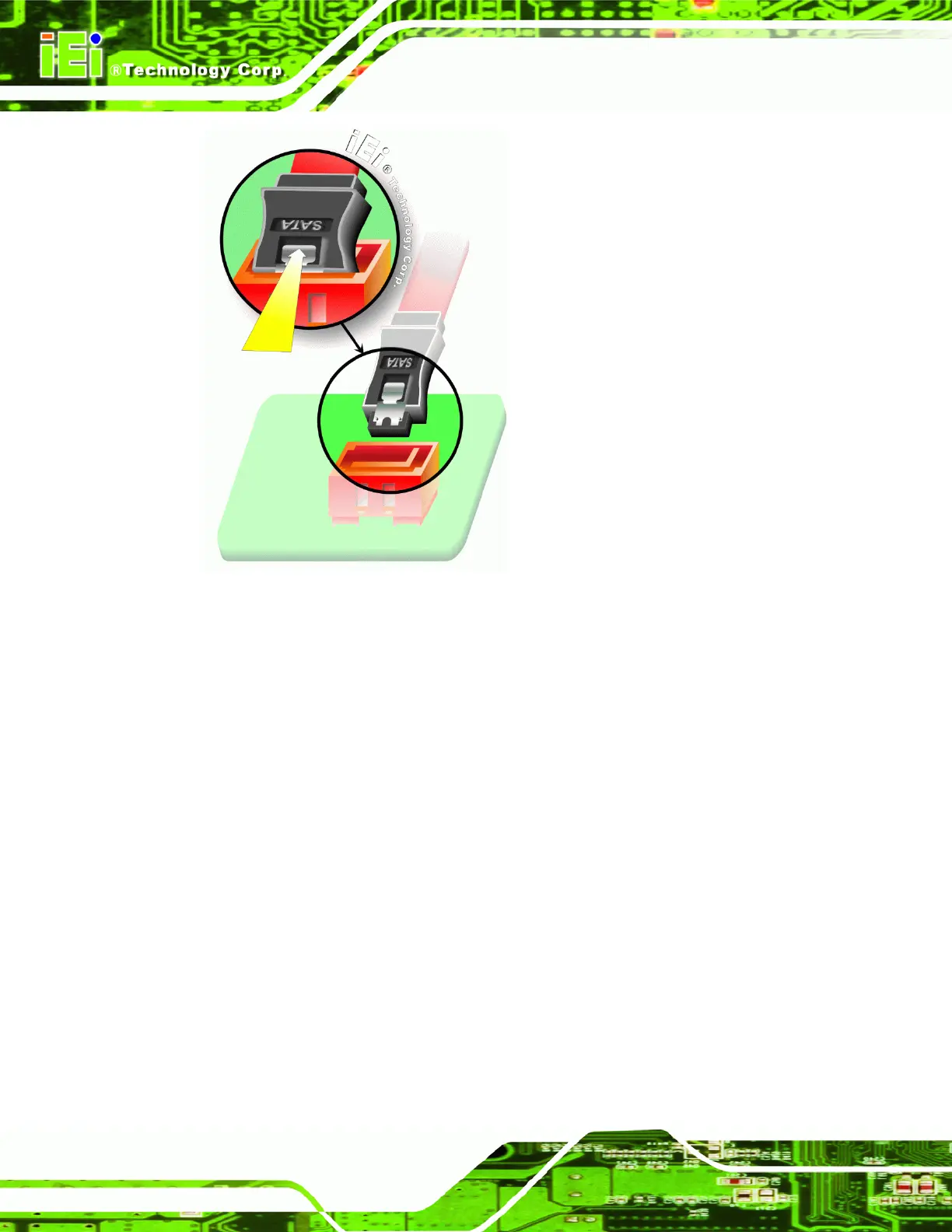

Figure 5-11: SATA Drive Cable Connection
Step 3: Connect the cable to the SATA disk. Connect the connector on the other end of
the cable to the connector at the back of the SATA drive. See
Figure 5-12.
Step 4: Connect the SATA power cable. Connect the SATA power connector to the back
of the SATA drive. See
Figure 5-12. Step 0:
