IMBA-8650 Motherboard
Page 55
PIN
B A
PIN
B A
32 AD_STB1 AD_STB1#
65 AD1 AD0
33 AD23 C/BE3# 66 VREF_CG VREF_G
Table 4-4: AGP Slot Pinouts
4.2.3 ATX Power Supply Connector (20-pins)
CN Label: ATX1
CN Type:
20-pin ATX power connector (2x10)
CN Location:
See
Figure 4-4
CN Pinouts:
See
Table 4-5
The 24-pin ATX power supply connector is connected to a ATX power supply.

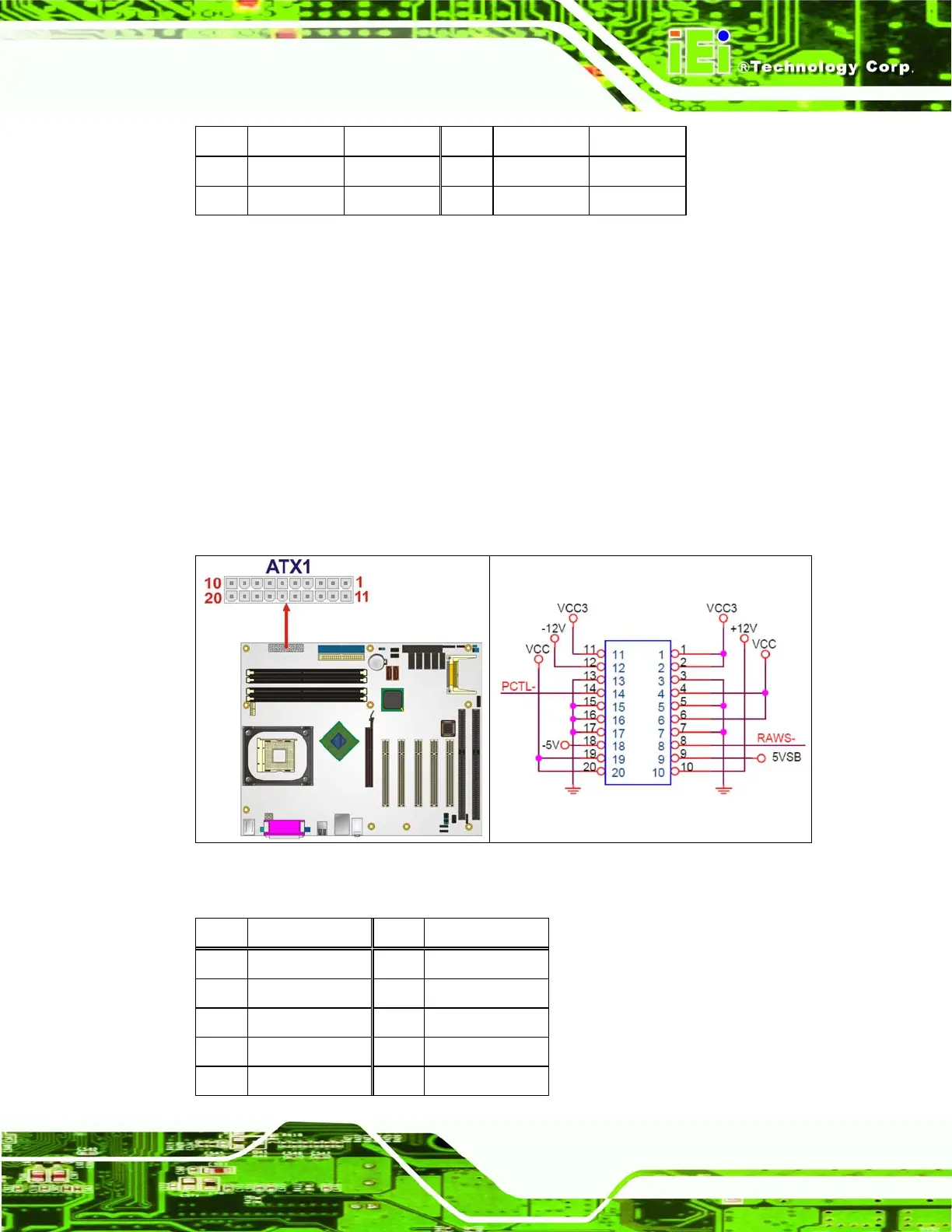

Figure 4-4: ATX Power Connector Location
PIN DESCRIPTION PIN DESCRIPTION
1 VCC3 11 VCC3
2 VCC3 12 -12V
3 GND 13 GND
4 VCC 14 PCTL-
5 GND 15 GND
To Next Page
