IEI Technology IMBA-8650 User Manual

IMBA-8650 Motherboard
Page 51
4.2.1 ATX Power Supply Connector (4-pins)
CN Label:
CN5
CN Type:
4-pin ATX power connector (1x4)
CN Location:
See
Figure 4-2
CN Pinouts:
See
Table 4-3
The 4-pin ATX power supply connector is connected to a +12V ATX power supply.

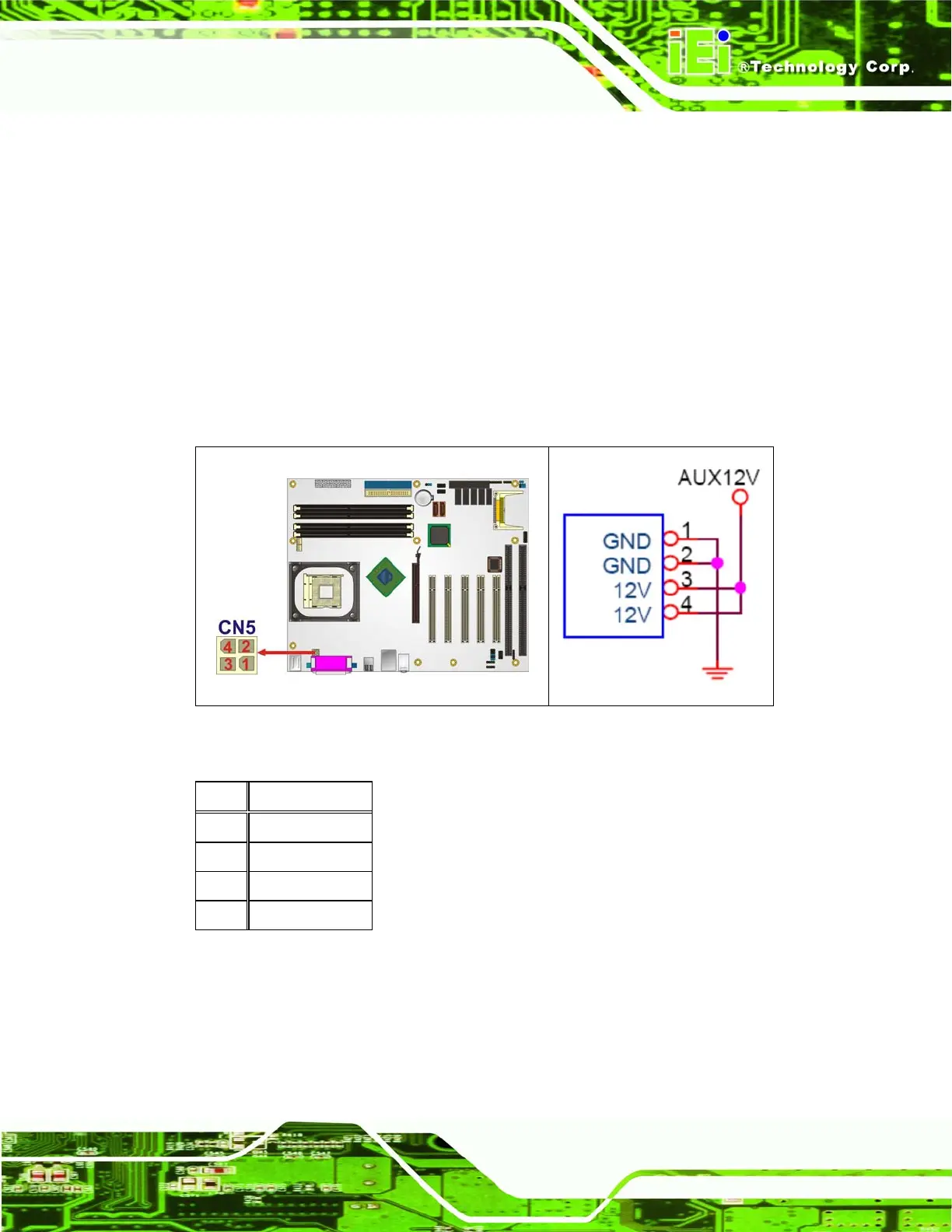

Figure 4-2: ATX Power Supply Connector (4-pins) Location
PIN DESCRIPTION
1 GND
2 GND
3 +12V
4 +12V
Table 4-3: ATX Power Supply Connector (4-pins) Pinouts
4.2.2 AGP Connector (66-pins)
CN Label:
AGP1
