IEI Technology IMBA-8650 User Manual

IMBA-8650 Motherboard
Page 63

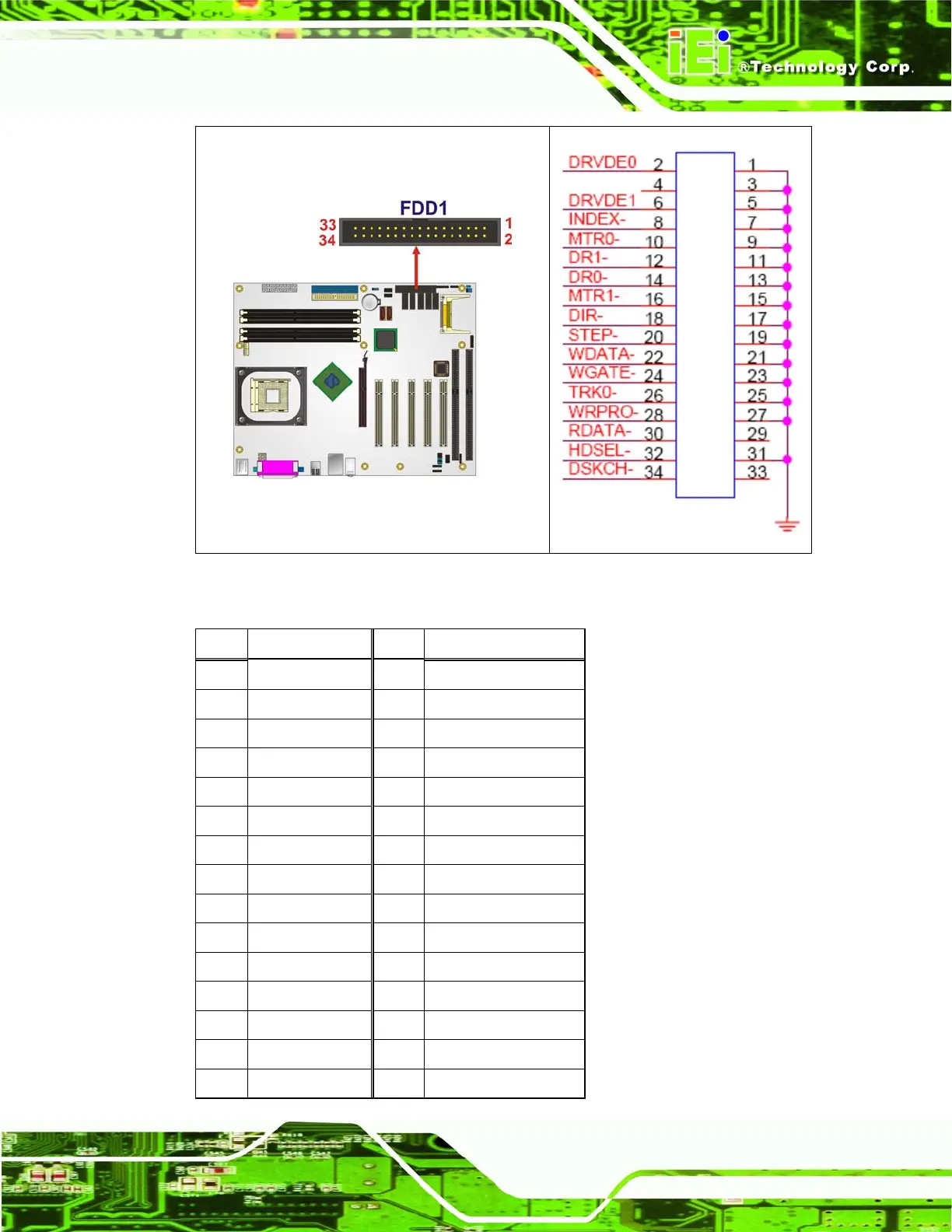

Figure 4-10: FDC Connector Location
PIN DESCRIPTION PIN DESCRIPTION
1 GND 2 DRIVE DETECT A
3 GND 4 N/C
5 GND 6 DRIVE DETECT B
7 GND 8 INDEX#
9 GND 10 MOTOR ENABLE A#
11 GND 12 DRIVE SELECT B#
13 GND 14 DRIVE SELECT A#
15 GND 16 MOTOR ENABLE B#
17 GND 18 DIRECTION#
19 GND 20 STEP#
21 GND 22 WRITE DATA#
23 GND 24 WRITE GATE#
25 GND 26 TRACK 0#
27 GND 28 WRITE PROTECT#
29 GND 30 READ DATA#
