IMBA-8650 Motherboard
Page 97
Before the IMBA-8650 is installed in the system, the jumpers must be set in accordance
with the desired configuration. The jumpers on the IMBA-8650 are listed in
Table 5-1.
Description Label Type
CF Master/Slave Selection JP3 2-pin header
Clear CMOS JP1 3-pin header
COM3 Mode Selection JP2 6-pin header
Table 5-1: Jumpers

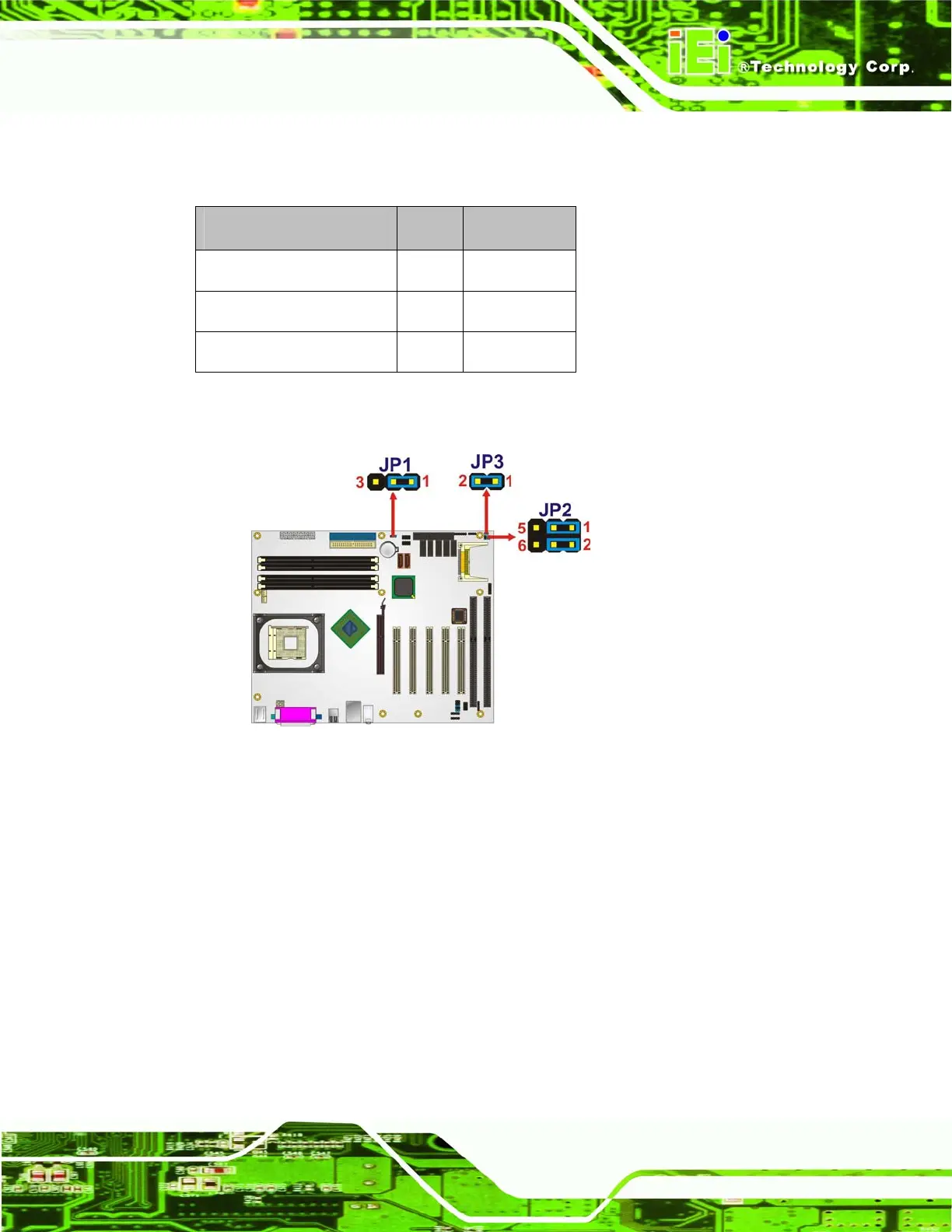

Figure 5-6: Jumper Locations
5.4.1 CF Master/Slave Selection
Jumper Label:
JP3
Jumper Type:
2-pin header
Jumper Settings:
See
Table 5-2
Jumper Location:
See
Figure 5-6
