IMBA-8650 Motherboard
Page 21
2.6.2 Intel
®
ICH5 Audio Codec ’97 Controller
The Audio Codec ’97 (AC’97) controller integrated into the ICH5 complies with AC’97
Component Specification, Version 2.3.

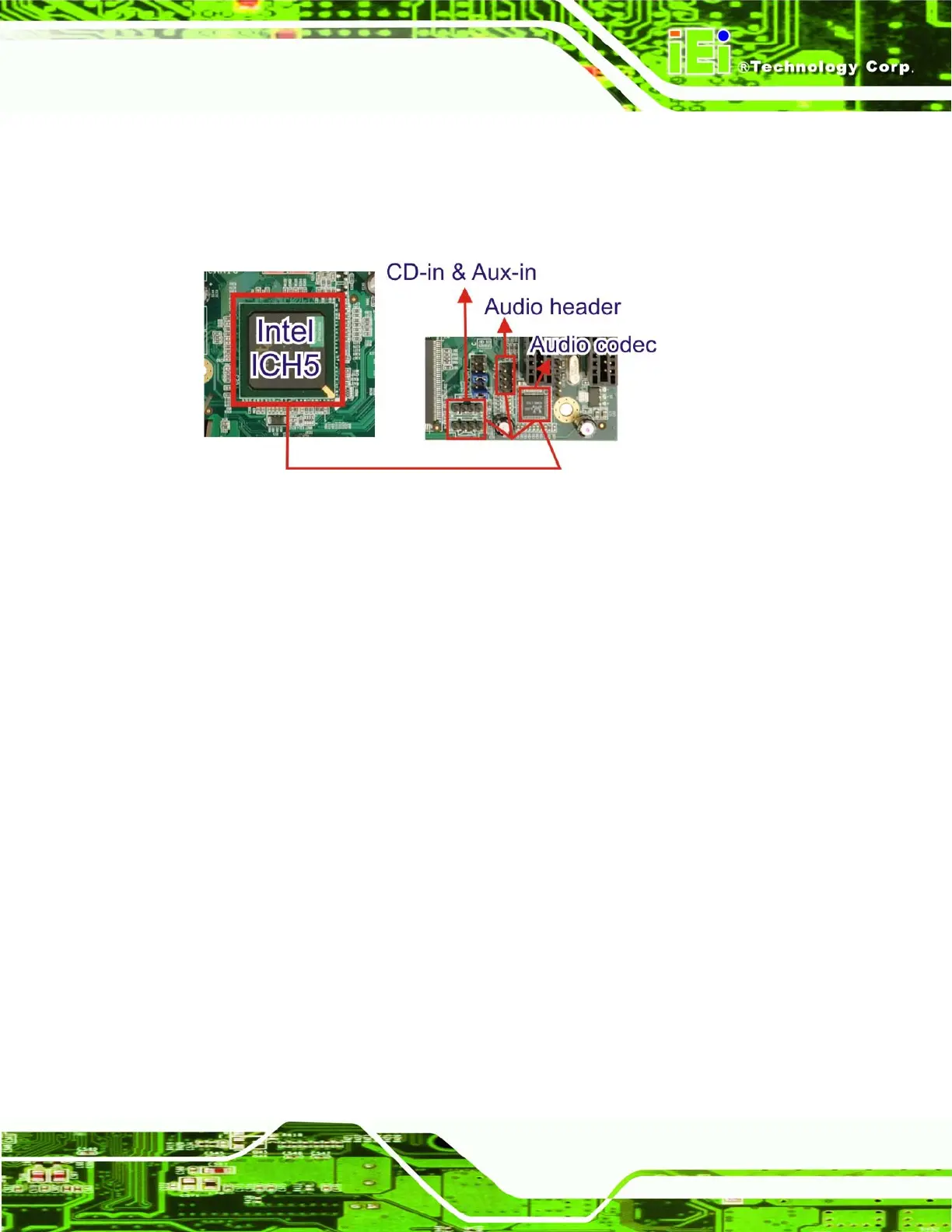

Figure 2-9: Onboard Audio
The AC’97 controller is connected to the onboard audio codec chipset, which is connected
to the phone jacks on the back panel. The AC’97 controller supports up to six PCM audio
output channels. The IMBA-8650 has the following audio jacks:
Line In
Line Out
Mic
CD In
Aux In
2.6.3 Intel
®
ICH5 IDE Interface
The integrated IDE interface on the ICH5 Southbridge supports up to four IDE hard disks
and ATAPI devices, PIO IDE transfers up to 16MB/s and Ultra ATA transfers up to
100MB/s. The IDE interface also connects to the CompactFlash® slot.
