IMBA-8650 Motherboard
Page 108
with the USB connectors on the IMBA-8650, connect the cable connectors to the
onboard connectors. See
Figure 5-13.

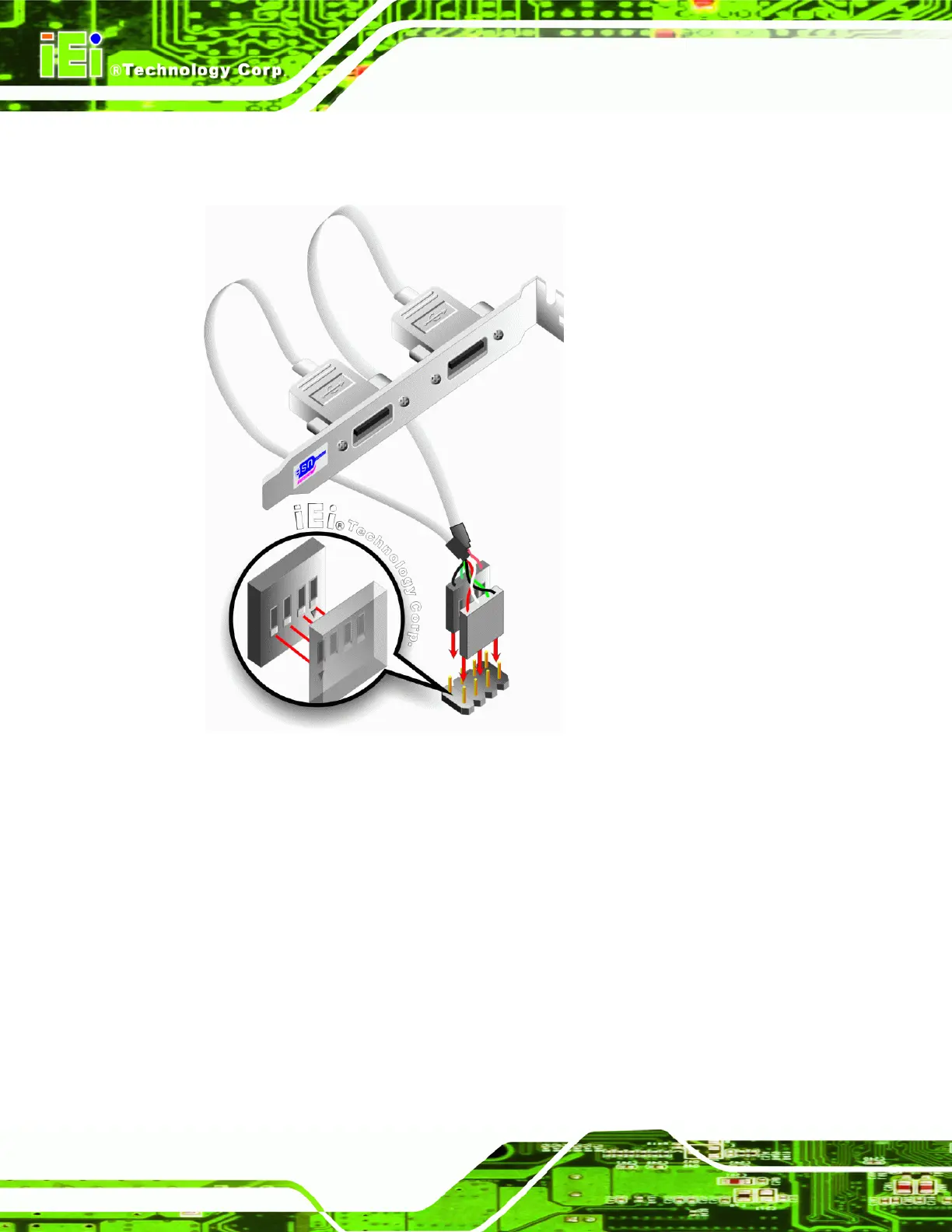

Figure 5-13: Dual USB Cable Connection
Step 4: Attach the bracket to the chassis. The USB 2.0 connectors are attached to a
bracket. To secure the bracket to the chassis please refer to the installation
instructions that came with the chassis.Step 0:
5.7 External Peripheral Interface Connection
The following external peripheral devices can be connected to the external peripheral
interface connectors.
Mouse and keyboard
Parallel devices
