IMBA-8650 Motherboard
Page 114

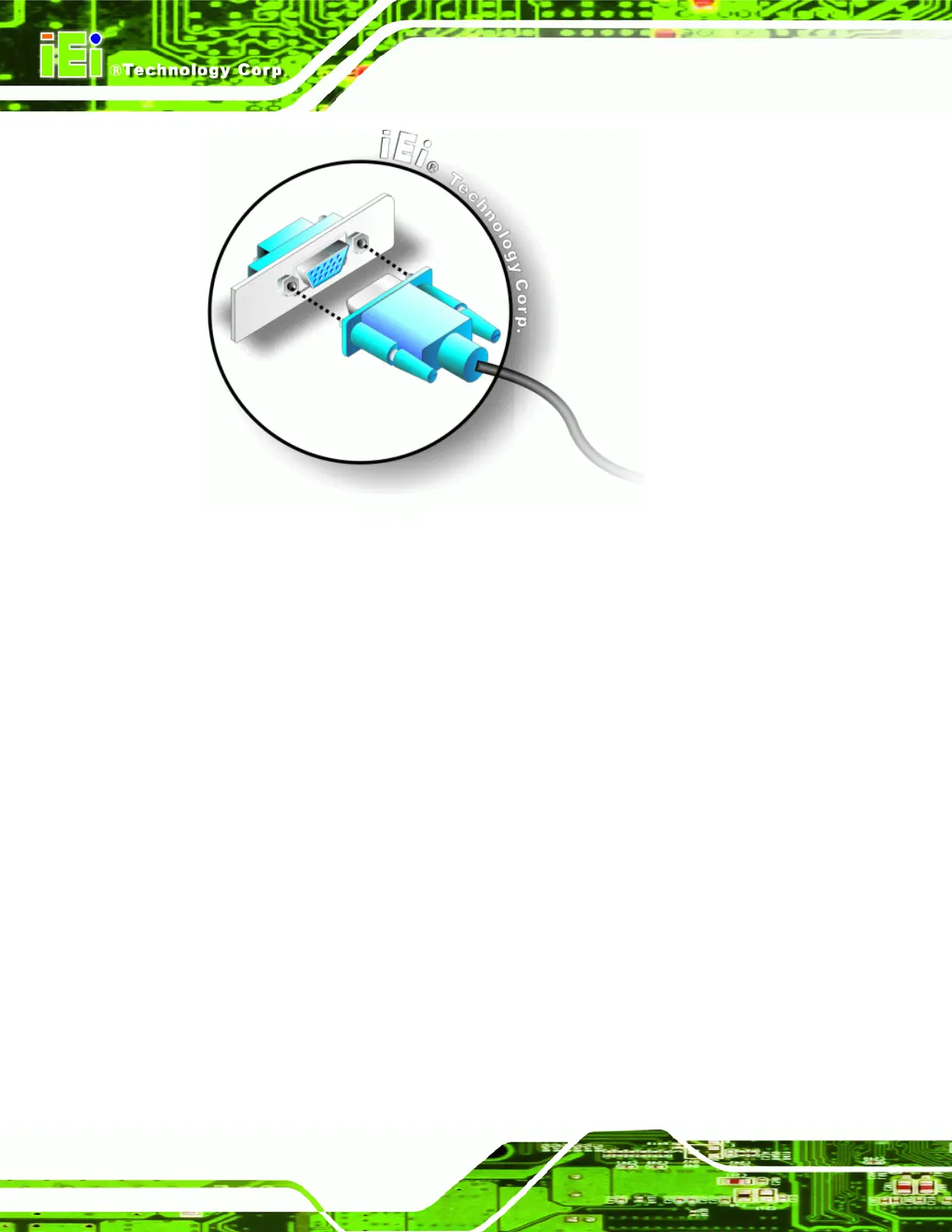

Figure 5-19: VGA Connector
Step 3: Secure the connector. Secure the VGA connector to the external interface by
tightening the two retention screws on either side of the connector. Step 0:
5.7.7 Serial Device Connection
The IMBA-8650 has a single female DB-9 connector on the external peripheral interface
panel for a serial device. Follow the steps below to connect a serial device to the
IMBA-8650.
Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in
Chapter 3.
Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into the
DB-9 connector on the external peripheral interface. See
Figure 5-20.
