IMBA-8650 Motherboard
Page 109
RJ-45 Ethernet cable connectors
USB devices
Audio devices
VGA monitor
Serial devices
To install these devices, connect the corresponding cable connector from the actual
device to the corresponding IMBA-8650 external peripheral interface connector making
sure the pins are properly aligned.
5.7.1 PS/2 Keyboard/Mouse Connection
The IMBA-8650 has a dual PS/2 connector on the external peripheral interface panel. The
dual PS/2 connector is used to connect to a keyboard and mouse to the system. Follow
the steps below to connect a keyboard and mouse to the IMBA-8650.
Step 1: Locate the dual PS/2 connector. The location of the dual PS/2 connector is
shown in Chapter 3.
Step 2: Insert the keyboard/mouse connector. Insert a PS/2 keyboard or mouse
connector into the appropriate PS/2 connector on the external peripheral
interface connector. See
Figure 5-14. Step 0:

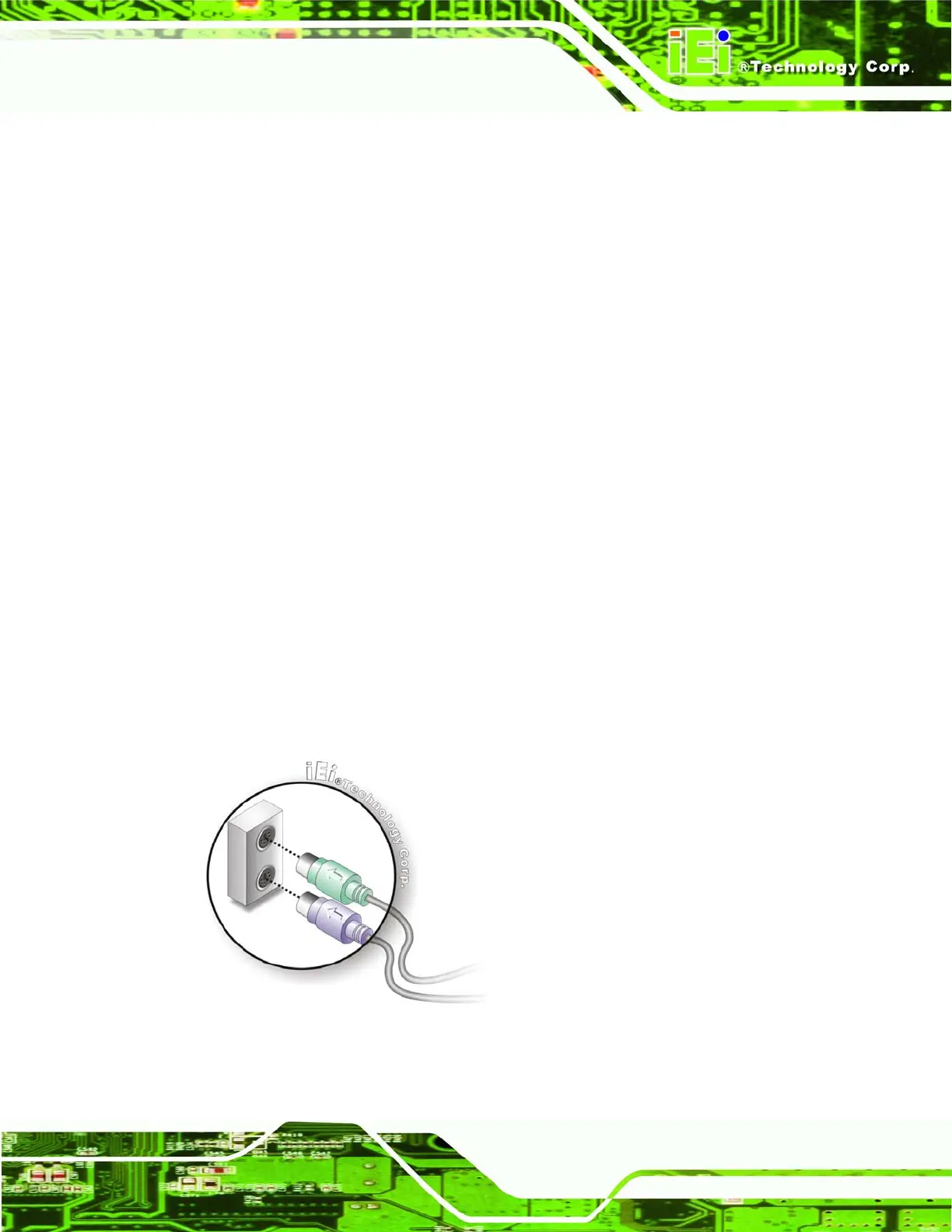

Figure 5-14: PS/2 Keyboard/Mouse Connector
